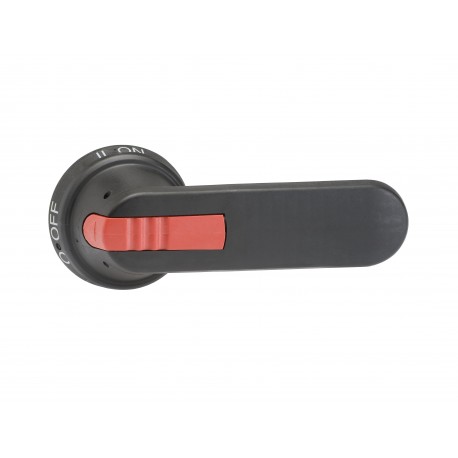

ABB 1SCA022615R1810 1SCA022615R1810 ABB COMMAND OHB175J12E311 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022615R1810 ABB COMMAND OHB175J12E311

1SCA022615R1810

022615

ABB

1 Pcs.

COMMAND OHB175J12E311 OHB175J12E311 Handle

Automation > Handle for power circuit breaker
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

1SCA022615R1810 is an ABB command handle assembly built to provide robust manual control for industrial disconnect switches and switchgear. Ergonomic handles mounted on enclosure exteriors allow operators to safely interact with high-voltage internal systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC303003C0201
  • Instructions and Manuals: 1SCC390008M0018
  • Degree of Protection: IP65
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Finland
  • Product Net Width: 208 mm
  • Product Net Height: 66 mm
  • Product Net Depth / Length: 45 mm
  • Product Net Weight: 0.17 kg
  • Package Level 1 Units: bag 1 piece
  • Package Level 1 Width: 208 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC390008M0018
Environmental
Degree of ProtectionIP65
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginFinland
Dimensions
Product Net Width208 mm
8.19 in
Product Net Height66 mm
2.6 in
Product Net Depth / Length45 mm
1.77 in
Product Net Weight0.17 kg
0.37 lb
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width208 mm
Package Level 1 Depth / Length45 mm
Package Level 1 Height66 mm
Package Level 1 Gross Weight0.17 kg
Package Level 1 EAN6417019207100
Technical
ColorBlack
Degree of ProtectionIP65
Handle ColorBlack
Handle Length175 mm
Handle TypePistol
Special FunctionsJ12E311
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC39122221
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3661493

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
