View larger
Images are for illustrative purposes only. Please refer to data sheet for details

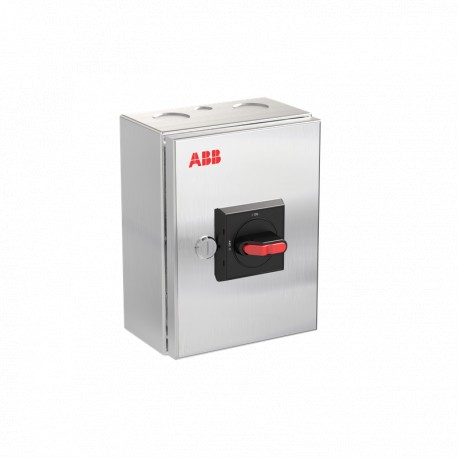

1SCA022613R1200 ABB Int. Boxed disconnector OTP63A3M
1SCA022613R1200
022613
ABB
1 Pcs.
Int. Boxed disconnector OTP63A3M
OTP63A3M Safety switch
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 9748a569-f49c-4e34-be11-081a27efba67 Finland |
| Simplified SCIP | c73f6865-a4aa-4493-9c01-0aa871dbd90a Sweden |
| d219df4a-7ac3-44a6-8e48-246da9afde77 Greece | |
| aaeae332-d8cf-4532-8e67-0ab12aeb9f0c Sweden | |
| ac50492f-9325-4559-bead-2688a112d6e2 Portugal | |
| 5cb28dc4-6851-434f-86ef-1057619f977d Poland | |
| bb6d39aa-a3ab-469b-a2b8-023b076ec33d Netherlands | |
| 20cf5998-0d4c-4db2-9dc3-4147596f16b6 Croatia | |
| 2db47e4b-d3a1-4630-b7f1-7a37d78ddbc0 Germany | |
| b94186a8-2973-4b9c-9955-eaec407beed6 Bulgaria | |
| 5ad4e126-06da-4b1b-a2a5-1a0917a010ad Estonia | |
| 187a412b-8980-4ce1-9011-d3cb31de62fe Hungary | |
| e48c3262-ce37-42a1-a2a0-b73f5dba622f Denmark | |
| b64cf8f6-b339-4b3b-bf94-65bac5100b0e Czech Republic | |
| 2a1ac0c6-e612-4c8d-90b6-15ae43895533 Spain | |
| 8f3e27ba-f71e-4b9c-9a41-db691c5bc0fe Hungary | |
| 73330b33-4442-4e1b-bad9-75969ef0e5be France | |
| e0d17870-3d53-4852-b673-c8118d7e5052 Belgium | |
| dc17b332-5ea2-4b80-89ae-8b258f196e45 Germany | |
| 3e9cf074-953d-400e-970f-a03d2eccba35 Germany | |
| 64f58e5b-2d17-4ece-b8c4-563023867656 Germany | |
| 5304d65e-e138-4399-a7f6-fcfa9a0ff2c9 Italy | |
| 872c92fd-5792-425c-b38f-d986cd966d3f Norway | |
| d6fbcd69-a38e-41c4-a764-140cc1dd8b64 Belgium | |
| f5f57448-3400-4222-aa0f-442eb9d19a51 Poland | |
| d5eab47e-5204-459f-80ff-4e7389e41919 Poland | |
| 7912118b-423e-436b-803e-782b97fac456 France | |
| c76ab271-7c2e-46cd-8d91-5c52f34e605d Germany | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340002M0012 |
| Mechanical Drawings | OTPK201490SM32.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Last Ordering Date | 2026-08-31 All Countries |
| Replacement Product ID (NEW) | OTP63GA3M |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 145 mm |
| Product Net Height | 200 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Weight | 2.3 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 162 mm |
| Package Level 1 Depth / Length | 222 mm |
| Package Level 1 Height | 148 mm |
| Package Level 1 Gross Weight | 2.4 kg |
| Package Level 1 EAN | 6417019199566 |
| Technical | |
| Cable Cross-Section | 10 ... 70 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM32+M16 / 2xM32+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 10 ... 70 mm² |
| Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 115 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Selector handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| (500 V) 63 A | |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A |
| (500 V) 50 A | |
| (690 V) 35 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 30 kW |
| (500 V) 30 kW | |
| (690 V) 30 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 6 N·m |
| Wire Stripping Length | 20 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 20 mm |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | Main Circuit 6 N·m |
| Certificates and Declarations | |
| BV Certificate | 1SCC340018D0204 |
| Declaration of Conformity - CE | 1SCC340003D2704 |
| DNV GL Certificate | 1SCC340045D0203 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Norway) | 1429405 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 750 V |
| Rated operating voltage (EF001435) | 750 V |
| Rated permanent current Iu (EF001389) | 115 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 63 A |
| Rated short-time withstand current lcw (EF007050) | 2.5 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 30 kW |
| Switching power at 400 V (EF009166) | 30 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
