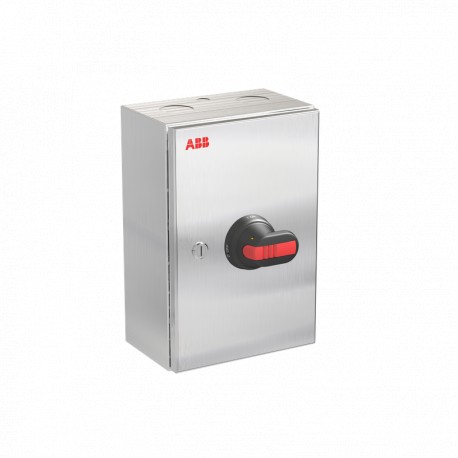

1SCA022580R8170 ABB Int. Boxed disconnector OTL36T6B
1SCA022580R8170
022580
ABB
1 Pcs.
Int. Boxed disconnector OTL36T6B
OTL36T6B Safety switch
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 714c55ed-5f37-4a85-88d8-dae98d03abb2 Finland |
| Simplified SCIP | b7fd313e-b252-4c20-b1bd-0469318e1c30 Germany |
| 4fc8f021-e0c5-4b31-99a5-81c959af49c7 Spain | |
| 8ac90d2f-4780-429b-b590-239febd88b21 Denmark | |
| 8b31ab48-6e96-48d3-83be-89ad569995fb Belgium | |
| 5a648cc0-f48a-4bad-9ae4-8fb9281ad2cf Hungary | |
| 3d5291a1-45e1-42b5-8589-8f108d5a1e8b Estonia | |
| 19a0e6b9-f40a-4a0c-8bc3-7ec251d00756 Greece | |
| 1d186cce-a713-425a-9ce6-49f8b6f11286 Portugal | |
| 7e4a847b-d8ce-4f70-bc8e-facea2109ef7 Poland | |
| 2b2b449b-2f4c-44b1-9996-d8578d6a7bfc Netherlands | |
| 3edf0a59-91f1-4f1f-95d1-213a6315a00e France | |
| b9d1b1fa-a4b9-4e2f-b9de-c30efb0f2fa9 Poland | |
| 6ffa161b-8d1e-49fe-8854-c5d4d9f6fee8 Germany | |
| 6aa3023b-1207-42b3-ba8b-bf64ce89c141 Germany | |
| 1b40e06b-a66a-43ab-a5a1-549bfbb723bd Croatia | |
| f0d53495-9564-4d50-8195-52b991f77270 Germany | |
| a3bb93be-775b-48aa-ad7e-562ea1342f86 Sweden | |
| 5bb1311a-5f11-4515-bdc9-7525cb3c244e Hungary | |
| 22c3980a-bdd3-4091-8555-bdc50aef104f Germany | |
| 2ab72b2f-85ee-4fca-ac47-f7adf00a5468 Czech Republic | |
| 228d9992-4459-4664-8a49-78788c551044 France | |
| 773d1736-4791-4b03-8fbc-817df93a99f0 Italy | |
| 894de335-0fbf-441e-87f6-48c36fc72d47 Norway | |
| fff993bf-8241-4042-8c63-36e45bf9167c Belgium | |
| 5e99f7f0-ea72-479a-ac4a-0b00e189692e Poland | |
| 1d4b5094-91bf-4612-825c-2929e69e1c2a Sweden | |
| 54dc9066-8527-4be0-8cc0-826317bc5217 Bulgaria | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340006M0013 |
| Mechanical Drawings | OTLK251611PBB.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Last Ordering Date | 2026-08-31 All Countries |
| Replacement Product ID (NEW) | OTL63GT6M |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Net Width | 165 mm |
| Product Net Height | 250 mm |
| Product Net Depth / Length | 110 mm |
| Product Net Weight | 3.2 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 212 mm |
| Package Level 1 Depth / Length | 313 mm |
| Package Level 1 Height | 191 mm |
| Package Level 1 Gross Weight | 3.4 kg |
| Package Level 1 EAN | 6417019187952 |
| Technical | |
| Cable Cross-Section | 1.5 ... 35 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | B-flange / B-flange |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm² |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 80 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 6P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 4.5 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| (500 V) 63 A | |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 45 A |
| (500 V) 45 A | |
| (690 V) 20 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 22 kW |
| (500 V) 22 kW | |
| (690 V) 15 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 2.1 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 2 N·m |
| Wire Stripping Length | 13 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 13 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 2 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340005D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3140572 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 750 V |
| Rated operating voltage (EF001435) | 750 V |
| Rated permanent current Iu (EF001389) | 80 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 45 A |
| Rated short-time withstand current lcw (EF007050) | 1.5 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 22 kW |
| Switching power at 400 V (EF009166) | 22 kW |
| Number of poles (EF001391) | 6 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
