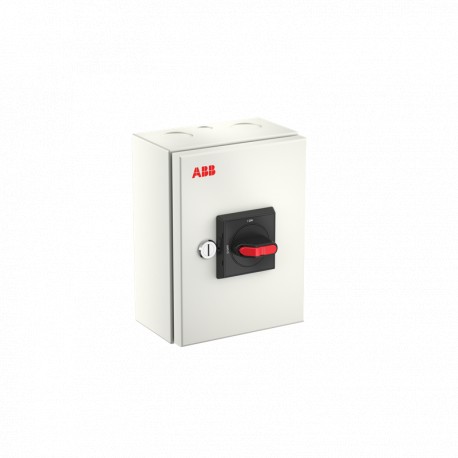

1SCA022562R4950 ABB Int. Boxed disconnector OTL45B4M
1SCA022562R4950
022562
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This enclosed boxed disconnector from ABB, model OTL45B4M, provides safe mechanical isolation for industrial circuits in harsh environments. Boxed disconnectors are commonly installed near outdoor or decentralized equipment to grant technicians a localized means of cutting power safely.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Declaration: 1SCC340075D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC340006M0013
- Mechanical Drawings: OTLK201510S32.stp
- Degree of Protection: acc. to IEC 60529 IP65
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363030
- Last Ordering Date: 2026-08-31 All Countries
- Replacement Product ID (NEW): OTL63GB4M
- Country or Territory of Origin: Bulgaria
- Product Net Width: 150 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340006M0013 |
| Mechanical Drawings | OTLK201510S32.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Last Ordering Date | 2026-08-31 All Countries |
| Replacement Product ID (NEW) | OTL63GB4M |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Net Width | 150 mm |
| Product Net Height | 200 mm |
| Product Net Depth / Length | 100 mm |
| Product Net Weight | 1.8 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 162 mm |
| Package Level 1 Depth / Length | 222 mm |
| Package Level 1 Height | 148 mm |
| Package Level 1 Gross Weight | 1.9 kg |
| Package Level 1 EAN | 6417019180304 |
| Technical | |
| Cable Cross-Section | 1.5 ... 35 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xø32.5+ø16.5 / 2xø32.5+ø16.5 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm² |
| Screw Clamp / PE Terminal 2pc,1.5 ... 25 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Selector handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Neutral Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 1.5 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 63 A |
| (380 ... 415 V) 63 A | |
| (690 V) 63 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 45 A |
| (500 V) 45 A | |
| (690 V) 20 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 22 kW |
| (500 V) 22 kW | |
| (690 V) 15 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 1.4 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 2 N·m |
| Wire Stripping Length | 13 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 13 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 2 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340005D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
