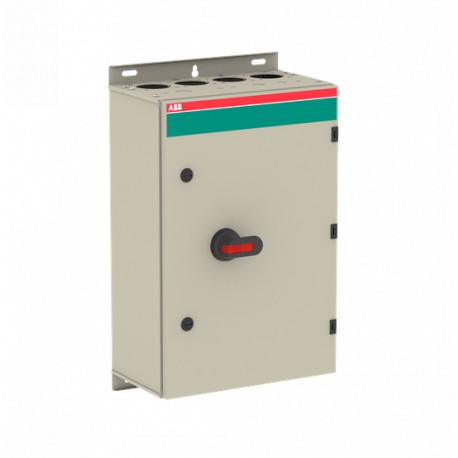

1SCA022461R5670 ABB Int. Boxed disconnector OT250KLRR4TZ
1SCA022461R5670
022461
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SCA022461R5670 is a boxed disconnector housed in an enclosure to protect internal switching mechanisms from dust and moisture in harsh environments. Outdoor and factory floor installations rely on enclosed disconnects for localized safety isolation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Declaration: 1SCC340075D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: a658310c-e80a-4323-b5e9-407365d3a7b6 Finland
- Simplified SCIP: fcfb0514-6d24-4830-97d3-3e91fd892077 Germany
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC340016M0005
- Mechanical Drawings: OTKM604023P4R.stp
- Degree of Protection: acc. to IEC 60529 IP65
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363090
- Country or Territory of Origin: Finland
- Product Net Width: 400 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a658310c-e80a-4323-b5e9-407365d3a7b6 Finland |
| Simplified SCIP | fcfb0514-6d24-4830-97d3-3e91fd892077 Germany |
| f55e028d-52fa-42ce-b757-3c9ec73d53e8 Greece | |
| 9489c245-e479-4828-9148-605ee0c1ea94 Spain | |
| 77d25a41-24d4-4c1a-93ca-8cd5d5086a3a Germany | |
| 3db68693-0ff7-49cd-9856-546e62eff8c4 Denmark | |
| 1bdc0fc0-607d-4f88-8abb-45d5b68600d9 Belgium | |
| 4a4752ae-6d68-4221-8d58-a6383574c308 Croatia | |
| 4f9d683e-cea7-46ab-84bd-ce69c65dcfbc Czech Republic | |
| a9a534bb-46a5-4c5d-8585-0fde9d8a2ce9 Hungary | |
| f7dbfa2f-8f6a-47d0-9e89-9d0df479bcf5 Italy | |
| 3b0057f2-d267-4885-8cd9-e6a532484e79 Poland | |
| 52e0266f-f886-48a4-8a32-5566205e610a Netherlands | |
| 02919484-3f9a-4c50-988e-e6417ad7a9ee Poland | |
| 01f5ac01-125b-4152-bbe9-e7b7ced67c1e Bulgaria | |
| 9b81ac25-879a-42f3-a69a-5ce57ab831c5 Portugal | |
| fc1e446a-b1aa-4677-8d5e-d589d608f613 Sweden | |
| 8cd6bae3-2b7d-40a8-96af-7840e7d00386 France | |
| e6811f9d-2e01-4066-acce-0dec12e08fab Poland | |
| deab9e1f-7c01-43d7-bb27-4350c990005d Sweden | |
| 22667005-7818-4d6f-87e8-34cad53ca81f France | |
| 1555d90f-b88b-441d-8e0b-22900e62a89e Belgium | |
| 17e8ce1b-e400-4824-93e9-0d9015f13a0c Germany | |
| 5a7a99c9-66bd-4693-ae94-015b6234191b Hungary | |
| c9a5f92d-56fb-4554-8e5c-ca931870faf8 Estonia | |
| 3a788455-f3a1-4da7-be79-da64bdc77311 Germany | |
| 4fd0e9b2-13e3-4e56-9050-4443d86f6722 Norway | |
| 433e7e59-8ef5-4527-a40b-5c2c92b1bbd2 Germany | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM604023P4R.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 15.31 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 17 kg |
| Package Level 1 EAN | 6417019144504 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 4xring-flange / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 4pc,10 ... 70+4pc M8 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 4P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW |
| (500 V) 160 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
