View larger
Images are for illustrative purposes only. Please refer to data sheet for details

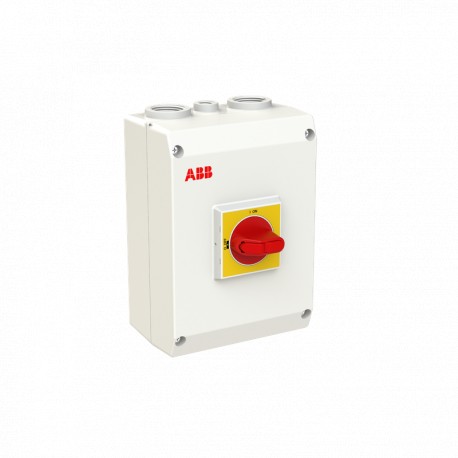

1SCA022399R6830 ABB Int. Boxed disconnector OTP36A3M
1SCA022399R6830
022399
ABB
1 Pcs.
Int. Boxed disconnector OTP36A3M
OTP36A3M Safety switch
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 7d6aa63d-bc62-4e1e-a3a8-4f54edeab30f Finland |
| Simplified SCIP | 5fc83d9b-1164-43b9-a1d6-be70aaa5a08f Germany |
| cac57d72-763f-4531-9515-c423f4500116 Poland | |
| 07e8a8ea-7ba3-49f2-8a26-a7443a5f5ba2 Greece | |
| e38974e5-eb2e-4d0a-b9ba-5a53c1d6db19 Netherlands | |
| 9716c900-b5eb-4b93-8dd6-04b05f47cd09 Hungary | |
| 7e4db7bd-99ac-432f-a06a-b144f82e0a87 Sweden | |
| af57785b-86e1-4913-81d6-745133cd92fe Poland | |
| 3fd0706b-ebfb-4d14-a89c-e0a3a9363653 Portugal | |
| 1acdb90f-24c2-4c17-b7e0-447a5a7e5811 Estonia | |
| 651cdbc7-c529-4d7a-b5d9-eb137ea42ed5 Sweden | |
| 916326f3-3760-48eb-94c7-4143e67d6ca1 Bulgaria | |
| 15b117f1-4fa8-49da-a517-68f9cbb86030 France | |
| d0b6035c-19ab-4eab-a606-ecb20b652f56 Poland | |
| 3bf2f7f2-04fc-408c-9f0b-a4db6efe4129 Belgium | |
| bc6e9d07-eb91-4ecf-871f-4839ef6dbc86 Germany | |
| 9684b0d3-817d-4fc6-b195-50352acc66ae France | |
| 29ebbfd6-fbae-4069-ba6f-bc1096ab7b93 Germany | |
| e420283c-c4ce-4b21-98eb-ea2eb382a837 Italy | |
| 8ddb1780-1b40-4b3e-8744-cf84de80b6af Czech Republic | |
| 696655e6-ae16-4df7-8d26-3f85e8fa9749 Belgium | |
| 9c11c88c-44a5-4e0b-b76b-fd868c61cf61 Croatia | |
| a18a924f-b939-4971-80c4-ddbe26da1db7 Germany | |
| 6e87ef9e-c3fc-4830-a18d-887165f96ad5 Denmark | |
| 3e79c56e-95cb-49ac-8a8b-f847b1d93b1e Germany | |
| d7b4d15d-2f12-42d4-bcd7-f68da615f3c5 Norway | |
| a21b62ed-bf7f-4469-8090-cc7978a42b06 Spain | |
| 4ddbd605-d5ea-4c2b-851e-5c2b1c45964e Hungary | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340002M0012 |
| Mechanical Drawings | OTPK201490SM32.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Last Ordering Date | 2026-08-31 All Countries |
| Replacement Product ID (NEW) | OTP63GA3M |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 145 mm |
| Product Net Height | 200 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Weight | 0.9 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 162 mm |
| Package Level 1 Depth / Length | 222 mm |
| Package Level 1 Height | 148 mm |
| Package Level 1 Gross Weight | 1 kg |
| Package Level 1 EAN | 6417019130255 |
| Technical | |
| Cable Cross-Section | 1.5 ... 35 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM32+M16 / 2xM32+M16 |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 1.5 ... 35 mm² |
| Screw Clamp / PE Terminal 2pc,1.5 ... 35 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 80 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Selector handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 4.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 1.5 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| (500 V) 63 A | |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 45 A |
| (500 V) 45 A | |
| (690 V) 20 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 22 kW |
| (500 V) 22 kW | |
| (690 V) 15 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 2.1 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 2 N·m |
| Wire Stripping Length | 13 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 13 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 2 N·m |
| Certificates and Declarations | |
| BV Certificate | 1SCC340018D0204 |
| Declaration of Conformity - CE | 1SCC340003D2704 |
| DNV GL Certificate | 1SCC340045D0203 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642265 |
| E-Number (Norway) | 1429403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 750 V |
| Rated operating voltage (EF001435) | 750 V |
| Rated permanent current Iu (EF001389) | 80 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 45 A |
| Rated short-time withstand current lcw (EF007050) | 1.5 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 22 kW |
| Switching power at 400 V (EF009166) | 22 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
