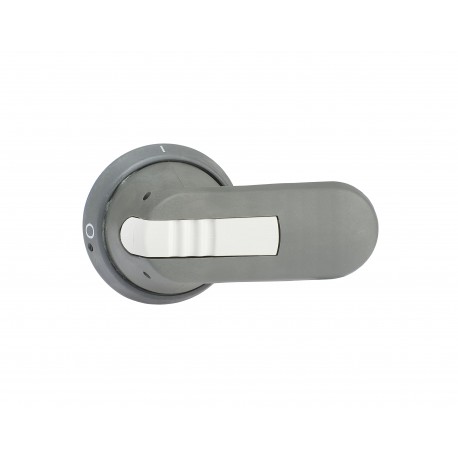

ABB 1SCA022381R0910 1SCA022381R0910 ABB Remote OGH95J12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022381R0910 ABB Remote OGH95J12

1SCA022381R0910

1SCA022381R0910

ABB

1 Pcs.

Remote OGH95J12 OHG95J12 HANDLE

Automation > Handle for power circuit breaker
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Abb 1SCA022381R0910 remote OGH95J12 mechanism acts as an extension and operating handle assembly for remote control switching applications in electrical distribution boards. Such units facilitate secure mechanical coupling between internal disconnectors and exterior enclosure doors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC390022M0020
  • Mechanical Drawings: OH_95J_palikka.igs
  • Degree of Protection: IP65
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85381000
  • Country or Territory of Origin: Finland
  • Product Net Width: 128 mm
  • Product Net Height: 45 mm
  • Product Net Depth / Length: 66 mm
  • Product Net Weight: 0.14 kg
  • Package Level 1 Units: bag 1 piece

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC390022M0020
Mechanical DrawingsOH_95J_palikka.igs
Environmental
Degree of ProtectionIP65
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85381000
Country or Territory of OriginFinland
Dimensions
Product Net Width128 mm
Product Net Height45 mm
Product Net Depth / Length66 mm
Product Net Weight0.14 kg
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width95 mm
Package Level 1 Depth / Length80 mm
Package Level 1 Height66 mm
Package Level 1 Gross Weight0.15 kg
Package Level 1 EAN6417019124247
Technical
ColorGrey
Degree of ProtectionIP65
Handle ColorGrey
Handle Length95 mm
Handle TypePistol
Special FunctionsJ12
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC39122230
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3602121
