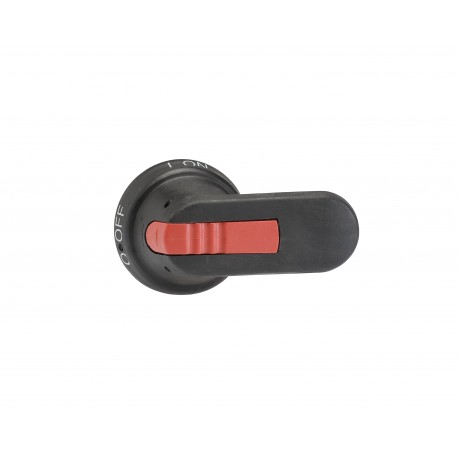

ABB 1SCA022381R0240 1SCA022381R0240 ABB OhB80J6 Controller View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022381R0240 ABB OhB80J6 Controller

1SCA022381R0240

022381

ABB

1 Pcs.

OhB80J6 Controller OHB80J6 HANDLE

Automation > Handle for power circuit breaker
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB OhB80J6 is a durable controller handle engineered to actuate industrial disconnect switches mounted deep within electrical distribution cabinets. This IP65-rated operator ensures reliable external control while sealing out environmental dust and moisture from sensitive internal electronics. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC390022M0020
  • Mechanical Drawings: OH_80J_palikka.igs
  • Degree of Protection: IP65
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Estonia
  • Product Net Width: 113 mm
  • Product Net Height: 45 mm
  • Product Net Depth / Length: 66 mm
  • Product Net Weight: 0.15 kg
  • Package Level 1 Units: bag 1 piece

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC390022M0020
Mechanical DrawingsOH_80J_palikka.igs
Environmental
Degree of ProtectionIP65
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85389099
Country or Territory of OriginEstonia
Dimensions
Product Net Width113 mm
Product Net Height45 mm
Product Net Depth / Length66 mm
Product Net Weight0.15 kg
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width70 mm
Package Level 1 Depth / Length115 mm
Package Level 1 Height50 mm
Package Level 1 Gross Weight0.16 kg
Package Level 1 EAN6417019139135
Technical
ColorBlack
Degree of ProtectionIP65
Handle ColorBlack
Handle Length80 mm
Handle TypePistol
Special FunctionsJ6
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC31162801
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3601979
E-Number (Norway)4337805
E-Number (Sweden)3171341
