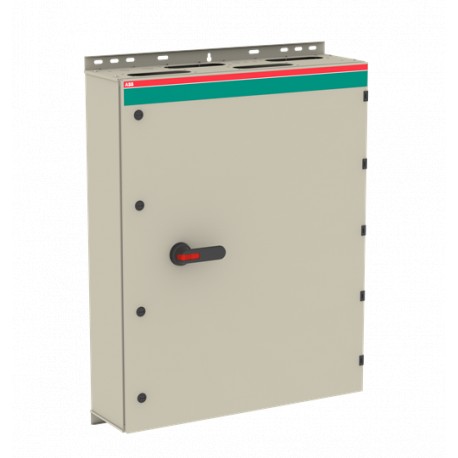

1SCA022340R3790 ABB Int. Boxed disconnector OT1000BLCC3TZ
1SCA022340R3790
022340
ABB
1 Pcs.
Int. Boxed disconnector OT1000BLCC3TZ
OT1000BLCC3TZ Safety switch
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 4b32a7f1-c392-4a9b-8396-4293c35278d8 Finland |
| Simplified SCIP | c003c883-45af-4f0d-88af-e76da7f3ce0e Germany |
| 64862249-f3e9-4fac-b639-d0d579df2138 Belgium | |
| cc8ff670-b6b3-4240-9e51-35fcba5cf219 Denmark | |
| dad3e157-6036-47d5-b865-295636f4218b Poland | |
| e2ede05c-143f-4760-b1fd-0b1dd9f6df82 Netherlands | |
| f15510b5-87cc-4c02-ac34-7da0f52f3f4a Estonia | |
| 0dcdd8c4-ed6c-482a-a289-cb4485b588de Greece | |
| adbce3df-cc08-4be9-9f13-b2f783404c3b Portugal | |
| 18537043-bb58-4440-9e3d-c3b146fb6abd Poland | |
| 59d4b9c4-3db4-4386-8faf-92097f972322 Spain | |
| 2230af04-1fb2-43b9-bce3-6a4090dba780 Croatia | |
| 276a2122-8197-4a12-9ade-f0f0b27dcf91 Germany | |
| 9c00e859-5725-4214-8ddf-4995d128d96f Norway | |
| 7b03508f-e8a9-4f3a-8821-cba83a17bc58 Germany | |
| 1d76932d-86a0-4fad-9f7d-33fe1329f7c3 Hungary | |
| 2b939dc5-5d74-4691-9963-bae1385a3160 Hungary | |
| 95315135-672a-41c3-a128-89cfb439a79b Sweden | |
| 3a48ee31-4aa5-44d1-b8d7-a25760fc34d3 France | |
| 72be13e1-79bd-4f82-951f-1cfce382ac3c Germany | |
| 4d74c687-3a1b-494d-a611-654c35b4689b Bulgaria | |
| 1162f552-8e4e-4f74-a948-85d842cc1409 Germany | |
| 524b3ffd-3b52-4d67-8f3f-baa4701a77e7 Czech Republic | |
| 5b8ac922-3a45-4a0c-acd5-27b059f76efa France | |
| a1c91f51-5c5f-4e0a-82af-17ab8ebe2d5c Italy | |
| b43506a4-330b-4d02-8a23-deedf8a9e6e6 Poland | |
| c581cc12-0668-40e2-baae-48d968214ccb Belgium | |
| e1b10f0b-ac75-4bb5-af4c-7542e38b74a9 Sweden | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM128033P6C.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 800 mm |
| Product Net Height | 1200 mm |
| Product Net Depth / Length | 330 mm |
| Product Net Weight | 62 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 815 mm |
| Package Level 1 Depth / Length | 1310 mm |
| Package Level 1 Height | 425 mm |
| Package Level 1 Gross Weight | 67 kg |
| Package Level 1 EAN | 6417019115382 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 6xC-flange / 6xC-flange, Knock-outs: 3x10mm, 12.5mm, 2x20.5mm, 2x25.5mm, 2x32.5mm |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm |
| Screw Clamp / PE Terminal 10pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1000 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 19 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1000 A |
| (500 V) 1000 A | |
| (690 V) 1000 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1000 A |
| (500 V) 1000 A | |
| (690 V) 1000 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 560 kW |
| (500 V) 710 kW | |
| (690 V) 1000 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 110 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 75 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M12 |
| Tightening Torque | Main Circuit 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340042D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642733 |
| E-Number (Norway) | 1429118 |
| E-Number (Sweden) | 3140618 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 1000 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 1000 A |
| Rated short-time withstand current lcw (EF007050) | 50 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 560 kW |
| Switching power at 400 V (EF009166) | 560 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
