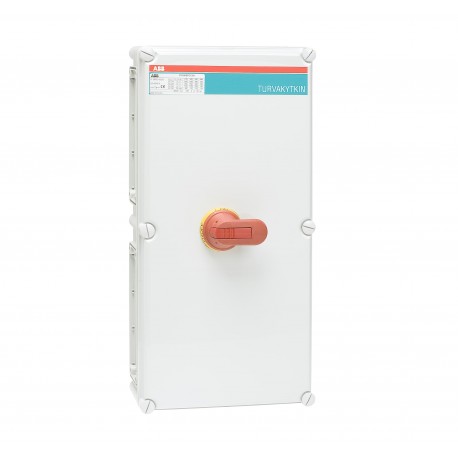

1SCA022278R1930 ABB Int. Boxed disconnector OT250KFCC3A
1SCA022278R1930
022278
ABB
1 Pcs.
Int. Boxed disconnector OT250KFCC3A
OT250KFCC3A Safety switch
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 66000341-4853-488e-80c6-5ef0e195ed73 Finland |
| Simplified SCIP | 3f17f510-7201-4132-b196-12a418a646af Germany |
| 41032286-b423-4d16-abb4-0e98d58739ad Poland | |
| 71b42746-6a05-434c-8a50-9d17a65f826c Italy | |
| 65103c2b-668a-4e7a-b012-fb92f51fa5d2 Poland | |
| 2afc2067-eecb-47af-9373-674467af18ac France | |
| ca21e9c8-853f-4c89-a9cc-7f4cbe4fae3f Sweden | |
| 3af8f5d1-5368-4c86-839d-e34a3fc76ecb Netherlands | |
| 93b63109-2774-4706-b270-89e62807345a Poland | |
| d7bbe39e-1a6a-4b4b-b163-5018f1bbd1ad Bulgaria | |
| b38a6d6b-4ace-40be-98a0-ae6fdf08e25c Portugal | |
| d13c4603-df5c-4e7e-96d9-a9f653d161c2 Sweden | |
| 197d158d-b520-4d6a-8d77-9cbd316bd71e Greece | |
| c001f910-18fc-4af5-ba0b-5b69385f1f14 Estonia | |
| 4cdc05bc-2ac9-4b49-a458-2f2215f97ddd Germany | |
| 032578d0-d006-4684-a77d-33f30604cdad Germany | |
| 89aa5080-2b2e-4c6a-99e8-ff597d0ab852 Belgium | |
| b5ad8412-aab0-4313-a568-fbfa90ec8866 France | |
| 963633b3-0bff-491f-a46e-a23473add166 Hungary | |
| f6ea89e9-bcd8-4e1d-b020-6837d8b4efdb Belgium | |
| aaa6cfb7-b291-409b-9b60-628ed9270c65 Germany | |
| 5f8172c4-65c2-4c52-9236-e27723298c74 Czech Republic | |
| de1a60c6-7b84-4427-9dc4-4cfd2f656b1e Croatia | |
| 7a739d3f-f43b-4536-abba-001ee896110f Norway | |
| fc5baf74-6a3c-4fec-84fa-d06230337aa2 Denmark | |
| 5cb71987-17d6-4b22-a860-34c7dff30f80 Germany | |
| 121759a2-72ec-44a1-b939-62916c541dda Spain | |
| f0808a9b-c698-4e82-94ac-931e0591bbe9 Hungary | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 560 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 7.463 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 9.7 kg |
| Package Level 1 EAN | 6417019064406 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW |
| (500 V) 160 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 250 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 132 kW |
| Switching power at 400 V (EF009166) | 132 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
