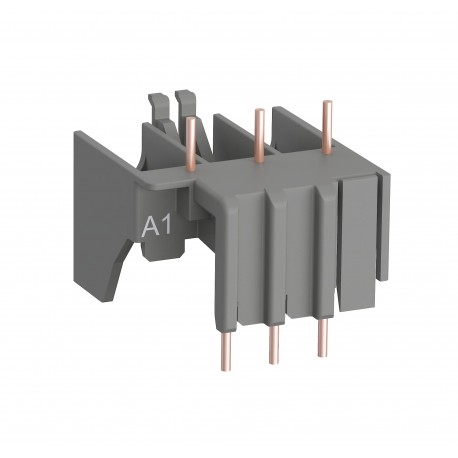

1SBN089306T1000 ABB BEA25/116 Connecting link
1SBN089306T1000
089306
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 1SBN089306T1000 BEA25/116 connecting link is a specialized mechanical and electrical adapter used to join contactors and motor protection equipment directly. It streamlines panel assembly by eliminating loose wiring between adjacent modular components.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85030099
- EPLAN Data: 9AAC167263_EPLAN
- Data Sheet, Technical Information: 1SBC100187L0203
- Instructions and Manuals: 1SBC101044M9801
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 44 mm
- Product Net Depth / Length: 26.1 mm
- Product Net Height: 53.1 mm
- Product Net Weight: 0.02 kg
- Terminal Type: Screw Terminals
- Suitable For: AX25
- Product Name: Connecting Link
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2021-006202
- RoHS Declaration: 2CMT2021-006277
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85030099 |
| Popular Downloads | |
| EPLAN Data | 9AAC167263_EPLAN |
| Data Sheet, Technical Information | 1SBC100187L0203 |
| Instructions and Manuals | 1SBC101044M9801 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Depth / Length | 26.1 mm |
| Product Net Height | 53.1 mm |
| Product Net Weight | 0.02 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AX25 |
| Product Name | Connecting Link |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| Certificates and Declarations | |
| GOST Certificate | GOST_POCCFRME77B07175 |
| Container Information | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 100 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Height | 70 mm |
| Package Level 1 Gross Weight | 0.6 kg |
| Package Level 1 EAN | 3471522387936 |
| Package Level 3 Units | 12960 piece |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39120000 |
| IDEA Granular Category Code (IGCC) | 5228 >> Accessories for low-voltage switch technology |
