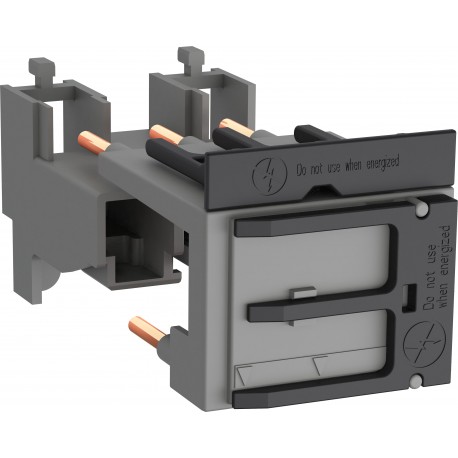

1SBN082325T2000 ABB BEA38-4KF Link Motor Guard Connection
1SBN082325T2000
082325
ABB
10 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A connecting link motor guard from ABB, item 1SBN082325T2000 (BEA38-4KF), mechanically and electrically joins contactors and manual motor starters into unified starter assemblies. These connection links streamline panel wiring and provide robust physical support within motor control centers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SBC101065M6801
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 45 mm
- Product Net Depth / Length: 90 mm
- Product Net Height: 33.5 mm
- Product Net Weight: 0.06 kg
- Standards: UL 60947-4-1, CSA C22.2 No. 60947-4-1
- Rated Operational Voltage: Main Circuit 690 V AC
- Rated Frequency (f): Main Circuit 50 / 60 Hz
- Terminal Type: Push-in Spring Terminals
- Suitable For: MS132
- Product Name: Connecting Link
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101065M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Height | 33.5 mm |
| Product Net Weight | 0.06 kg |
| Technical | |
| Standards | UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Push-in Spring Terminals |
| Suitable For | MS132 |
| AF26 | |
| AF26Z | |
| AF30 | |
| AF30Z | |
| AF38 | |
| AF38Z | |
| AFC26 | |
| AFC30 | |
| AFC38 | |
| Product Name | Connecting Link |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250021U1000 |
| Declaration of Conformity - UKCA | 1SBD250043U1000 |
| GOST Certificate | GOST_POCCFR.ME77.B07175.pdf |
| UL Certificate | UL-US-L312527-151-12119002-5 |
| UL-CA-L312527-451-12119002-5 | |
| Container Information | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 92 mm |
| Package Level 1 Depth / Length | 225 mm |
| Package Level 1 Height | 80 mm |
| Package Level 1 Gross Weight | 0.72 kg |
| Package Level 1 EAN | 3471523019041 |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39120000 |
| E-Number (Finland) | 3709780 |
| E-Number (Sweden) | 3210698 |
