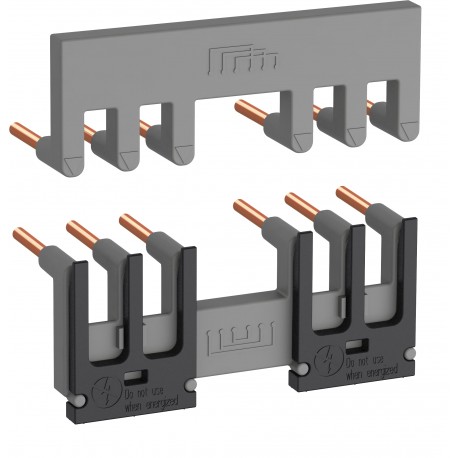

1SBN082322R1000 ABB BER38-4KF Connection Kit
1SBN082322R1000
082322
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Simplifying the mechanical and electrical installation of motor control gear, the ABB 1SBN082322R1000 ABB BER38-4KF Connection Kit links contactors and associated switching devices reliably. Pre-engineered connection kits ensure proper phase alignment and reduce wiring time in industrial starter panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SBC101056M6801
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 79 mm
- Product Net Depth / Length: 30 mm
- Product Net Height: 39 mm
- Product Net Weight: 0.08 kg
- Standards: EN 60947-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
- Rated Operational Voltage: Main Circuit 690 V AC
- Rated Frequency (f): Main Circuit 50 / 60 Hz
- Terminal Type: Push-in Spring Terminals
- Suitable For: AF26
- Product Name: Connection Set
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101056M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 79 mm |
| Product Net Depth / Length | 30 mm |
| Product Net Height | 39 mm |
| Product Net Weight | 0.08 kg |
| Technical | |
| Standards | EN 60947-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Push-in Spring Terminals |
| Suitable For | AF26 |
| AF26Z | |
| AF30 | |
| AF30Z | |
| AF38 | |
| AF38Z | |
| Product Name | Connection Set |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250021U1000 |
| Declaration of Conformity - UKCA | 1SBD250043U1000 |
| GOST Certificate | GOST_POCCFR.ME77.B07175.pdf |
| UL Certificate | UL-US-L312527-151-12119002-5 |
| UL-CA-L312527-451-12119002-5 | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 44 mm |
| Package Level 1 Depth / Length | 83 mm |
| Package Level 1 Height | 43 mm |
| Package Level 1 Gross Weight | 0.095 kg |
| Package Level 1 EAN | 3471523131439 |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39120000 |
| E-Number (Finland) | 3709750 |
| E-Number (Sweden) | 3210700 |
