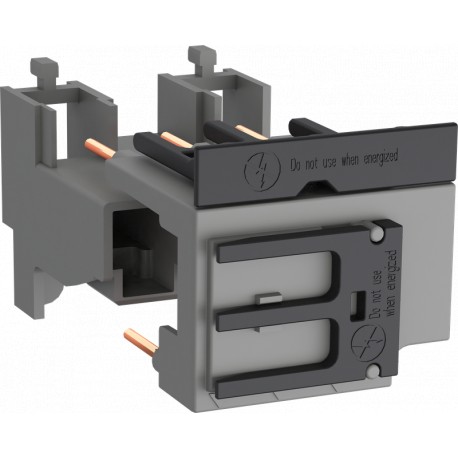

ABB 1SBN081325T1000 1SBN081325T1000 ABB BEA16-4KF Link Motor Guard Connection View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SBN081325T1000 ABB BEA16-4KF Link Motor Guard Connection

1SBN081325T1000

081325

ABB

10 Pcs.

BEA16-4KF Link Motor Guard Connection BEA16-4KF Connecting Link with Manual Motor Starter

Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb part number 1SBN081325T1000 is a link motor guard connection accessory that joins manual motor starters and contactors into unified starter assemblies. Such connecting links provide both mechanical support and secure power path routing within compact motor control circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: 1SBC101065M6801
  • Instructions and Manuals (Part 2): 1SAC200017M0002
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 45 mm
  • Product Net Depth / Length: 90 mm
  • Product Net Height: 32.5 mm
  • Product Net Weight: 0.044 kg
  • Standards: UL 60947-4-1, CSA C22.2 No. 60947-4-1
  • Rated Operational Voltage: Main Circuit 690 V AC
  • Rated Frequency (f): Main Circuit 50 / 60 Hz
  • Terminal Type: Push-in Spring Terminals
  • Suitable For: MS132
  • Product Name: Connecting Link

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SBC101065M6801
Instructions and Manuals (Part 2)1SAC200017M0002
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width45 mm
Product Net Depth / Length90 mm
Product Net Height32.5 mm
Product Net Weight0.044 kg
Technical
StandardsUL 60947-4-1, CSA C22.2 No. 60947-4-1
Rated Operational VoltageMain Circuit 690 V AC
Rated Frequency (f)Main Circuit 50 / 60 Hz
Terminal TypePush-in Spring Terminals
Suitable ForMS132
AF09
AF09Z
AF12
AF12Z
AF16
AF16Z
AFC09
AFC12
AFC16
Product NameConnecting Link
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
Declaration of Conformity - CE1SBD250021U1000
Declaration of Conformity - UKCA1SBD250043U1000
GOST CertificateGOST_POCCFR.ME77.B07175.pdf
UL CertificateUL-US-L312527-151-12119002-5
UL-CA-L312527-451-12119002-5
Container Information
Package Level 1 Unitsbox 10 piece
Package Level 1 Width92 mm
Package Level 1 Depth / Length225 mm
Package Level 1 Height80 mm
Package Level 1 Gross Weight0.56 kg
Package Level 1 EAN3471523019034
External Classifications and Standards
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC39120000
E-Number (Finland)3709779
E-Number (Sweden)3210697

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
