View larger
Images are for illustrative purposes only. Please refer to data sheet for details

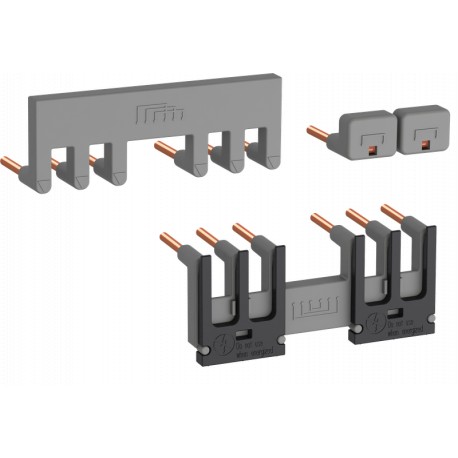

1SBN081323R2000 ABB BEY16-4KF Connection Kit
1SBN081323R2000
081323
ABB
1 Pcs.
BEY16-4KF Connection Kit
BEY16-4KF Connection Set for Star-Delta Starter
Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101057M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 72 mm |
| Product Net Depth / Length | 27 mm |
| Product Net Height | 32 mm |
| Product Net Weight | 0.055 kg |
| Technical | |
| Standards | EN 60947-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Push-in Spring Terminals |
| Suitable For | AF09 |
| AF09Z | |
| AF12 | |
| AF12Z | |
| AF16 | |
| AF16Z | |
| Product Name | Connection Set |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250021U1000 |
| Declaration of Conformity - UKCA | 1SBD250043U1000 |
| GOST Certificate | GOST_POCCFR.ME77.B07175.pdf |
| UL Certificate | UL-US-L312527-151-12119002-5 |
| UL-CA-L312527-451-12119002-5 | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 36 mm |
| Package Level 1 Depth / Length | 75 mm |
| Package Level 1 Height | 35 mm |
| Package Level 1 Gross Weight | 0.07 kg |
| Package Level 1 EAN | 3471523131446 |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39121521 |
| IDEA Granular Category Code (IGCC) | 4727 >> Motor starter controls |
| E-Number (Finland) | 3709749 |
| E-Number (Sweden) | 3210705 |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Connecting bridge |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
