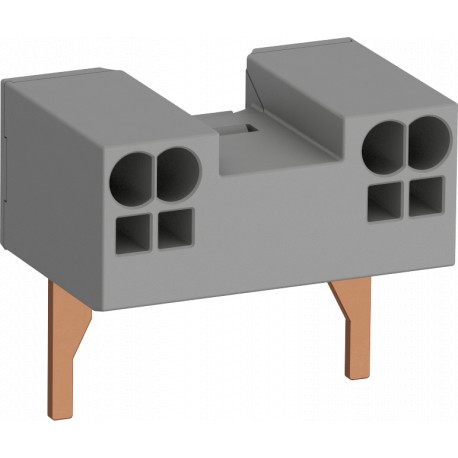

LDC4K Additional Coil Terminal Block
Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB auxiliary control component ensures precise signal transmission and status monitoring within automated switching architectures. Engineers integrate these units into control circuits to expand the switching capabilities of primary contactors and relays across various industrial automation systems.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85369010
- EPLAN Data: 9AAC167263_EPLAN
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SBC101054M6801
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 34 mm
- Product Net Depth / Length: 22 mm
- Product Net Height: 15 mm
- Product Net Weight: 0.01 kg
- Rated Frequency (f): Control Circuit 50 / 60 Hz
- Rated Insulation Voltage (U i ): acc. to IEC 60947-5-1 690 V
- Connecting Capacity Control Circuit: Flexible with Ferrule 1/2x 0.5 ... 2.5 mm²
- Wire Stripping Length: Control Circuit 10 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369010 |
| Popular Downloads | |
| EPLAN Data | 9AAC167263_EPLAN |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101054M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 34 mm |
| Product Net Depth / Length | 22 mm |
| Product Net Height | 15 mm |
| Product Net Weight | 0.01 kg |
| Technical | |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.5 ... 2.5 mm² |
| Flexible with Insulated Ferrule 1/2x 0.5 ... 1.5 mm² | |
| Flexible 1/2x 0.5 ... 2.5 mm² | |
| Rigid Solid 1/2x 1 ... 2.5 mm² | |
| Wire Stripping Length | Control Circuit 10 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Terminal Type | Push-in Spring Terminals |
| Suitable For | AF09 |
| AF09Z | |
| AF12 | |
| AF12Z | |
| AF16 | |
| AF16Z | |
| AF26 | |
| AF26Z | |
| AF30 | |
| AF30Z | |
| AF38 | |
| AF38Z | |
| AF40 | |
| AF52 | |
| AF65 | |
| AF80 | |
| AF96 | |
| AFC09 | |
| AFC12 | |
| AFC16 | |
| AFC26 | |
| AFC30 | |
| AFC38 | |
| AFC40 | |
| AFC52 | |
| AFC65 | |
| AFC80 | |
| AFC96 | |
| AF09B | |
| AF09ZB | |
| AF12B | |
| AF12ZB | |
| AF16B | |
| AF16ZB | |
| AF26B | |
| AF26ZB | |
| AF30B | |
| AF30ZB | |
| AF38B | |
| AF38ZB | |
| AF40B | |
| AF52B | |
| AF65B | |
| AF80B | |
| AF96B | |
| NF22E | |
| NFZ22E | |
| NF31E | |
| NFZ31E | |
| NF40E | |
| NFZ40E | |
| NF44E | |
| NFZ44E | |
| NF53E | |
| NFZ53E | |
| NF62E | |
| NFZ62E | |
| NF71E | |
| NFZ71E | |
| NF80E | |
| NFZ80E | |
| NFC22E | |
| NFC31E | |
| NFC40E | |
| NFC44E | |
| NFC53E | |
| NFC62E | |
| NFC71E | |
| NFC80E | |
| NFZB22E | |
| NFB22E | |
| NFZB31E | |
| NFB31E | |
| NFZB40E | |
| NFB40E | |
| NFZB44E | |
| NFB44E | |
| NFZB62E | |
| NFB62E | |
| NFZB80E | |
| NFB80E | |
| Product Name | Additional Coil Terminal Block |
| Technical UL/CSA | |
| Connecting Capacity Control Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ABS Certificate | ABS_20-2060694-PDA |
| Declaration of Conformity - CE | 1SBD250060U1000 |
| Declaration of Conformity - UKCA | 1SBD250061U1000 |
| Container Information | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 85 mm |
| Package Level 1 Depth / Length | 110 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Gross Weight | 0.1 kg |
| Package Level 1 EAN | 3471523131460 |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39121410 |
| IDEA Granular Category Code (IGCC) | 4547 >> Terminal blocks |
| E-Number (Finland) | 3708044 |
| E-Number (Sweden) | 3210660 |
