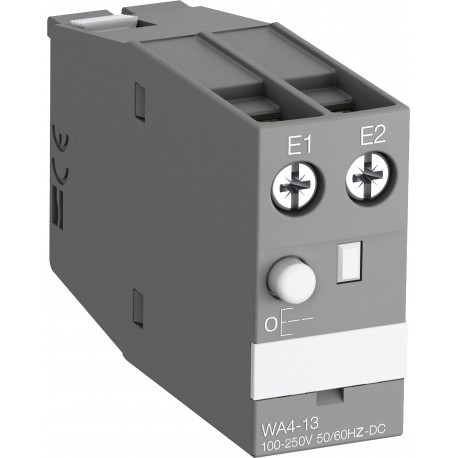

1SBN040100R1013 ABB WA4-13 Mec. Retention Cont. AF09-AF65
1SBN040100R1013
040100
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
WA4-13 Mec. Retention Cont. AF09-AF65 is an Abb auxiliary contact block (1SBN040100R1013) installed on industrial contactors to maintain mechanical latching states during control circuit operations. Such components are standard in automation systems where motor starters and control relays require reliable state retention without continuous coil energization.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SBC101046M6801
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 19.8 mm
- Product Net Depth / Length: 67.4 mm
- Product Net Height: 41 mm
- Product Net Weight: 0.065 kg
- Rated Frequency (f): Control Circuit 50 / 60 Hz
- Rated Insulation Voltage (U i ): acc. to IEC 60947-5-1 690 V
- Rated Control Circuit Voltage (U c ): 50 Hz 100 ... 250 V
- Coil Consumption: Pull-in DC (Umin / Umax) 15 ... 100 W
- Connecting Capacity Control Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
- Wire Stripping Length: Control Circuit 10 mm
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101046M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 19.8 mm |
| Product Net Depth / Length | 67.4 mm |
| Product Net Height | 41 mm |
| Product Net Weight | 0.065 kg |
| Technical | |
| Standards | IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1-14 |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V |
| 60 Hz 100 ... 250 V | |
| DC Operation 100 ... 250 V | |
| Coil Consumption | Pull-in DC (Umin / Umax) 15 ... 100 W |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | |
| Rigid Solid 1/2x 1 ... 2.5 mm² | |
| Rigid Stranded 1/2x 1 ... 2.5 mm² | |
| Wire Stripping Length | Control Circuit 10 mm |
| Tightening Torque | Control Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AF09 |
| AF09Z | |
| AF12 | |
| AF12Z | |
| AF16 | |
| AF16Z | |
| AF26 | |
| AF26Z | |
| AF30 | |
| AF30Z | |
| AF38 | |
| AF38Z | |
| AF40 | |
| AF52 | |
| AF65 | |
| NF22E | |
| NFZ22E | |
| NF31E | |
| NFZ31E | |
| NF40E | |
| NFZ40E | |
| Product Name | Mechanical Latching Unit |
| Technical UL/CSA | |
| Tightening Torque UL/CSA | Control Circuit 11 in·lb |
| Environmental | |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | CB_HU-002678-A1 |
| CCC Certificate | CCC_2024010305656856 |
| Declaration of Conformity - CCC | 2020980303000186 |
| Declaration of Conformity - CE | 1SBD250020U1000 |
| Declaration of Conformity - UKCA | 1SBD250042U1000 |
| UL Certificate | UL_20181026-E312527_7_2 |
| UL Listing Card | UL_E312527 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 72 mm |
| Package Level 1 Depth / Length | 25 mm |
| Package Level 1 Height | 44 mm |
| Package Level 1 Gross Weight | 0.08 kg |
| Package Level 1 EAN | 3471523131088 |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3709747 |
