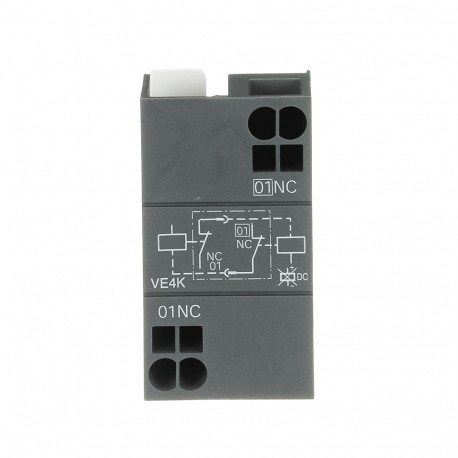

1SBN030113R1000 ABB VEM4K
1SBN030113R1000
030113
ABB
1 Pcs.
Automation > Mechanic interlock for switch
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb VEM4K auxiliary contact and interlock assembly expands control circuit capabilities while managing mechanical block sequencing in automated installations. Such units integrate directly with contactors to provide vital signal feedback and interlocking logic. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SBC101028M6801
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 25 mm
- Product Net Depth / Length: 31.6 mm
- Product Net Height: 43 mm
- Product Net Weight: 0.03 kg
- Number of Auxiliary Contacts NO: 0
- Number of Auxiliary Contacts NC: 2
- Number of Poles: 2P
- Conventional Free-air Thermal Current (I th ): acc. to IEC 60947-5-1, Θ = 40 °C 16 A
- Rated Insulation Voltage (U i ): acc. to IEC 60947-5-1 690 V
- Rated Impulse Withstand Voltage (U imp ): 6 kV
