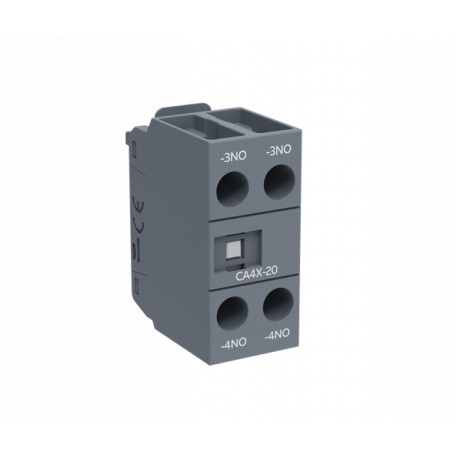

1SBN010110R1020 ABB CA4-20 CONTACT AUX. FRONTAL
1SBN010110R1020
1SBN010110R1020
ABB
1 Pcs.
Automation > Auxiliary contact block
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An auxiliary contact block, the Abb 1SBN010110R1020 mounts to the front of industrial contactors to enhance the control capability of electrical panels. Engineers use these components to relay operating statuses, manage interlocking circuits, and coordinate automated sequences safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 43 mm
- Product Net Depth / Length: 19.9 mm
- Product Net Height: 23.6 mm
- Product Net Weight: 0.024 kg
- Number of Auxiliary Contacts NO: 2
- Number of Auxiliary Contacts NC: 0
- Number of Poles: 2P
- Standards: IEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14
- Rated Operational Voltage: Auxiliary Circuit 690 V
- Rated Frequency (f): Auxiliary Circuit 50 / 60 Hz
- Conventional Free-air Thermal Current (I th ): acc. to IEC 60947-5-1, Θ = 40 °C 16 A
- Rated Operational Current AC-15 (I e ): (500 V) 2 A
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 43 mm |
| Product Net Depth / Length | 19.9 mm |
| Product Net Height | 23.6 mm |
| Product Net Weight | 0.024 kg |
| Technical | |
| Number of Auxiliary Contacts NO | 2 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14 |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A |
| (690 V) 2 A | |
| (24 / 127 V) 6 A | |
| (220 / 240 V) 4 A | |
| (400 / 440 V) 3 A | |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W |
| (48 V) 2.8 A / 134 W | |
| (72 V) 1 A / 72 W | |
| (110 V) 0.55 A / 60 W | |
| (125 V) 0.55 A / 69 W | |
| (220 V) 0.27 A / 60 W | |
| (250 V) 0.27 A / 68 W | |
| (400 V) 0.15 A / 60 W | |
| (500 V) 0.13 A / 65 W | |
| (600 V) 0.1 A / 60 W | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A |
| for 1 s 100 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V | |
| acc. to UL/CSA 600 V | |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour |
| (DC-13) 900 cycles per hour | |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Power Loss | at 6 A per Pole 0.1 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | |
| Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | |
| Rigid 1/2x 1 ... 2.5 mm² | |
| Rigid Solid 1/2x 1 ... 2.5 mm² | |
| Rigid Stranded 1/2x 1 ... 2.5 mm² | |
| Wire Stripping Length | Auxiliary Circuit 10 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Tightening Torque | Auxiliary Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AF09 |
| AF09Z | |
| AF12 | |
| AF12Z | |
| AF16 | |
| AF16Z | |
| AF26 | |
| AF26Z | |
| AF30 | |
| AF30Z | |
| AF38 | |
| AF38Z | |
| AF40 | |
| AF52 | |
| AF65 | |
| AF80 | |
| AF96 | |
| AFC09 | |
| AFC12 | |
| AFC16 | |
| AFC26 | |
| AFC30 | |
| AFC38 | |
| AFC40 | |
| AFC52 | |
| AFC65 | |
| AFC80 | |
| AFC96 | |
| NF22E | |
| NFZ22E | |
| NF31E | |
| NFZ31E | |
| NF40E | |
| NFZ40E | |
| NFC22E | |
| NFC31E | |
| NFC40E | |
| NFZB22E | |
| NFB22E | |
| NFZB31E | |
| NFB31E | |
| NFZB40E | |
| NFB40E | |
| Product Name | Auxiliary Contact Block |
| Technical UL/CSA | |
| Connecting Capacity Auxiliary Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Rigid Stranded 1/2x 18-14 AWG | |
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| BV Certificate | BV_2634H24900C1 |
| CB Certificate | FR-719194 |
| CCC Certificate | CCC_2024010305656311 |
| Declaration of Conformity - CCC | CQC2019010304264779 |
| Declaration of Conformity - CE | 1SBD250007U1000 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 110 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Gross Weight | 0.026 kg |
| Package Level 1 EAN | 3471523024694 |
| Package Level 2 Units | box 50 piece |
| Package Level 2 Gross Weight | 1.4 kg |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121500 |
| E-Number (Sweden) | 3210695 |
