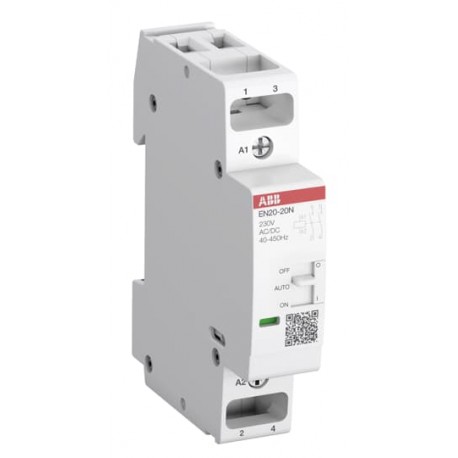

1SBE122111R0120 ABB Contact. EN20-20N-01 2NA 24AC/DC
1SBE122111R0120
122111
ABB
1 Pcs.
Automation > Installation contactor for distribution board
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operating as an essential electrical switching interface, the 1SBE122111R0120 ABB Contact. is typically integrated into control cabinets to automate circuits for motors, lighting arrays, and heating elements. This component ensures dependable circuit isolation and remote power control across automated systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- EPLAN Data: 9AAC404714_EPLAN
- Data Sheet, Technical Information: 2CDC103051C0201
- Instructions and Manuals: 2CDC103043M6801
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 18 mm
- Product Net Depth / Length: 65 mm
- Product Net Height: 85 mm
- Product Net Weight: 0.14 kg
- Dimension Diagram: 1SBB505186D3001
- Number of Main Contacts NO: 2
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 0
- Number of Auxiliary Contacts NC: 0
- Number of Poles: 2P
