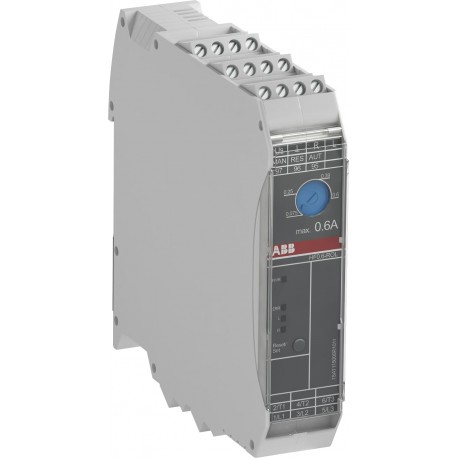

HF0.6-ROL-24VDC HF0.6-ROL-24VDC Electronic Compact Starter 24 VDC

Automation > Motor starter/Motor starter combination
Electronic relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85371098
Product Main TypeHF
Product NameElectronic Starter
Popular Downloads
Data Sheet, Technical Information2CDC130013M0401
Instructions and Manuals2CDC130013M0401
Dimension Diagram1SAT100401F0001
Dimensions
Product Net Width22.5 mm
Product Net Height99 mm
Product Net Depth / Length114.5 mm
Product Net Weight0.217 kg
Technical
StandardsIEC/EN 60947-1
IEC/EN 60947-4-2
UL 60947-1
UL 60947-4-2
FunctionReversed-on-line starter with overload protection
UtilizationMotor Protection
Rated Operational VoltageMain Circuit 500 V AC
Operational VoltageMaximum 550 V AC
Minimum 42 V AC
Rated Frequency (f)Main Circuit 50 Hz
Main Circuit 60 Hz
Rated Control Supply Voltage (Us)24 V DC
Rated Input Voltage (UIN)Switching Threshold at Signal <0> -3 ... 9.6 V
Switching Threshold at Signal <1> 19.2 ... 30 V
Rated Impulse Withstand Voltage (Uimp)Main Circuit 6 kV
Rated Insulation Voltage (Ui)500 V
Rated Operational Current AC-51 (Ie)0.6 A
Rated Operational Current AC-53a (Ie)0.6 A
Rated Control Supply Current (Is)0.04 A
Rated Uninterrupted Current (Iu)0.6 A
Input Current0.003 A
Switching Frequency≤ 2 Hz
120 starts/min
7200 starts/h
Rated Operational Power AC-53a (Pe)0.18 kW
Overvoltage CategoryIII
Overload ProtectionElectronic overload protection
Setting Range0.075 ... 0.600 A
Trip Classclass 10A
Number of Poles3P
Power LossMaximum 1.5 W
Minimum 1.1 W
Number of Protected Poles3
Mechanical DurabilityNr. Operations 10000 cycle
Electrical Durability30000000 cycle
Delay Time (τ)Off, Maximum, Switched Off via Supply Voltage 500 ms
Off, Typical, Switched Off via Control Input Voltage 30 ms
Off, Typical, Switched Off via Supply Voltage 25 ms
Off, Maximum, Switched Off with Pushbutton 3 second [unit of time]
Off, Minimum, Switched Off with Pushbutton 0.5 second [unit of time]
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position1
Connecting Capacity Control CircuitFlexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1x 0.5 ... 4 mm²
Connecting Capacity Main CircuitFlexible with Ferrule 1x 2 ... 2.5 mm²
Flexible 1x 2 ... 2.5 mm²
Rigid 1x 2 ... 2.5 mm²
Recommended Screw DriverControl Circuit M3
Main Circuit M3
Terminal TypeScrew Terminals
Tightening TorqueControl Circuit 0.5 ... 0.6 N·m
Main Circuit 0.5 ... 0.6 N·m
Wire Stripping LengthControl Circuit 8 mm
Main Circuit 8 mm
Response TimePhase Asymmetry 33% 120 second [unit of time]
Phase Asymmetry 67% 1.8 second [unit of time]
Phase Failure 1.8 second [unit of time]
Pollution Degree2
Phase Loss SensitiveYes
Degree of ProtectionHousing IP20
Main Circuit Terminals IP20
Short-Circuit Current Rating (SCCR)(500 V AC, 30 A Class J or CC) 100 kA
Technical UL/CSA
Maximum Operating Voltage UL/CSAMain Circuit 500 V AC
Horsepower Rating UL/CSANominal Switching Performance Full Load (power factor = 0.4) 0.4 Hp
Nominal Switching Performance Full Load (power factor = 0.8) 0.6 Hp
Full Load Amps Motor Use0.6 A
Connecting Capacity Main Circuit UL/CSAFlexible with Ferrule 1x 24 ... 14 AWG
Flexible 1x 24 ... 14 AWG
Solid 1x 24 ... 14 AWG
Connecting Capacity Control Circuit UL/CSAFlexible with Ferrule 1x 24 ... 14 AWG
Flexible 16-8 AWG
Solid 1x 24 ... 14 AWG
Tightening Torque UL/CSAControl Circuit 5 ... 7 in·lb
Main Circuit 5 ... 7 in·lb
Safety Information
Mean Time to Failure (MTTF)39.6 year
Environmental
Ambient Air TemperatureOperation -25 ... +70 °C
Operation Compensated -40 ... + 80 °C
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SAA983001-4501
RoHS Declaration1SVD981001-4401
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006538
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CCC Certificate1SAA918005-3802
cUL CertificatecUL E191658
Declaration of Conformity - CCC2020970304003456
Declaration of Conformity - CE1SAD938504-0195
Declaration of Conformity - UKCA1SAD938501-1195
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width150 mm
Package Level 1 Depth / Length115 mm
Package Level 1 Height34 mm
Package Level 1 Gross Weight0.317 kg
Package Level 1 EAN4013614515545
External Classifications and Standards
Object Classification CodeB
ETIM 9EC001037 - Motor starter/motor starter combination
ETIM 10EC001037 - Motor starter/motor starter combination
eClassV11.0 : 27370905
UNSPSC39121521
IDEA Granular Category Code (IGCC)4727 >> Motor starter controls
E-Number (Finland)3707547
E-Number (Norway)4102013
E-Number (Sweden)3210495

ETIM for 1SAT115000R1011 Low-voltage industrial controls and switchgear (EC001037)
Feature Name Feature Value
Type of motor starter (EF009598) Reversing starter
With short-circuit release (EF006691) No
Rated control supply voltage AC 50 Hz (EF003978) 0 V
Rated control supply voltage AC 60 Hz (EF003979) 0 V
Rated control supply voltage DC (EF003980) 24 V
Rated operation power at AC-3, 230 V, 3-phase (EF009599) 0.09 kW
Rated operation power at AC-3, 400 V (EF001364) 0.18 kW
Rated operation current Ie (EF001443) 0.6 A
Rated operation current at AC-3, 400 V (EF009602) 0.6 A
Overload release current setting (EF002336) 0.075 A
Ambient temperature, upper operating limit (EF009603) 80 °C
Temperature compensated overload protection (EF009604) Yes
Suitable for rail mounting (EF003972) Yes
With transformer (EF000278) No
Number of command positions (EF001372) 16
Suitable for emergency stop (EF001433) No
Number of indicator lights (EF001965) 4
External reset possible (EF003426) Yes
With fuse (EF006693) No
Supporting protocol for TCP/IP (EF003050) No
Supporting protocol for PROFIBUS (EF003052) No
Supporting protocol for CAN (EF003053) No
Supporting protocol for INTERBUS (EF003054) No
Supporting protocol for ASI (EF003051) No
Supporting protocol for Modbus (EF003057) No
Supporting protocol for Data-Highway (EF003058) No
Supporting protocol for DeviceNet (EF003059) No
Supporting protocol for SUCONET (EF003060) No
Supporting protocol for LON (EF003017) No
Supporting protocol for PROFINET IO (EF007525) No
Supporting protocol for PROFINET CBA (EF007524) No
Supporting protocol for SERCOS (EF006657) No
Supporting protocol for Foundation Fieldbus (EF007522) No
Supporting protocol for EtherNet/IP (EF007521) No
Supporting protocol for AS-Interface Safety at Work (EF007519) No
Supporting protocol for DeviceNet Safety (EF007520) No
Supporting protocol for INTERBUS-Safety (EF006662) No
Supporting protocol for PROFIsafe (EF007526) No
Supporting protocol for SafetyBUS p (EF007527) No
Supporting protocol for other bus systems (EF003062) No
