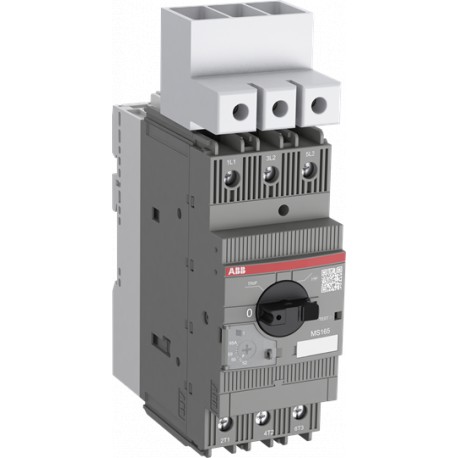

1SAM401923R1003 ABB Power supply block S2-M3-50
1SAM401923R1003
401923
ABB
1 Pcs.
Power supply block S2-M3-50
S2-M3-50 3-phase Power infeed Block for MS165, 50 mm²
Automation > Rail terminal bar
Electronic motor protection relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369010 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC131081M6801 |
| Instructions and Manuals (Part 3) | 1SBC100214C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 54 mm |
| Product Net Height | 65 mm |
| Product Net Depth / Length | 59.3 mm |
| Product Net Weight | 0.172 kg |
| Technical | |
| Rated Operational Voltage | 690 V AC |
| 250 V DC | |
| Rated Operational Current (Ie) | 125 A |
| Number of Poles | 3P |
| Degree of Protection | IP20 |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Flexible 1x 10 ... 50 mm² |
| Rigid 1x 10 ... 50 mm² | |
| Tightening Torque | Main Circuit 6 N·m |
| Wire Stripping Length | Main Circuit 16 mm |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Remarks | UL/CSA Type E/F and IEC |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 8-0 AWG |
| Stranded 1x 8-0 AWG | |
| Tightening Torque UL/CSA | Main Circuit 54 in·lb |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -50 ... +85 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA963005-4502 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 2ade4f22-d224-4870-8572-2f6afc73f2e4 Germany |
| Simplified SCIP | 0ec21bcf-a57c-4350-b02d-97604b9b2788 Italy |
| 11ea5fb6-292a-40c4-b60a-aa931583bc0b France | |
| 2cccbf9d-54e0-4d0a-b766-b1c9feb792d1 Estonia | |
| 49c21700-6a66-4b21-9fdd-83d6a05ccb3e Belgium | |
| 509c98fa-41db-4fe7-a9a1-6e014b838ca6 Czech Republic | |
| 56df1229-a648-4e2c-98a7-9328271915d9 Portugal | |
| 667e85f1-6302-42d2-9f2b-dda490cbb5dd Denmark | |
| 6f7c17b6-b1e2-4178-9951-4bb87c86c4f3 Norway | |
| 7a79ac9c-42f3-4105-a46a-0a4a4f1052be Croatia | |
| 7b6ad2ec-2afe-4b2a-9757-933d2fec2d2b Germany | |
| 931e3a3c-12bb-48ef-80d4-ffa401e7d11b Hungary | |
| 9e686ed5-2bc0-472a-aed4-c525c221543f Spain | |
| a21ed621-d578-4555-ba32-04368b431ba5 Poland | |
| c7fb676f-c044-43b4-a88c-6d2eb0af53e9 Netherlands | |
| cb3d615c-0c28-4973-be8a-b7c456bbd57a Sweden | |
| dba769f9-d66d-4416-9aa5-a2bc6486251e Bulgaria | |
| e5740a91-846c-44d3-bf16-ed3b4581502c Finland | |
| f4c2790f-2e2e-4c90-bb51-a0f669b73e18 Greece | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SAD101100-3411 |
| Declaration of Conformity - UKCA | 1SAD201100-3411 |
| UL Certificate | E121190-20000619 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 80 mm |
| Package Level 1 Depth / Length | 59 mm |
| Package Level 1 Height | 64 mm |
| Package Level 1 Gross Weight | 0.19 kg |
| Package Level 1 EAN | 4013614555725 |
| External Classifications and Standards | |
| Object Classification Code | X |
| ETIM 9 | EC000275 - Main line branch terminal |
| ETIM 10 | EC000275 - Main line branch terminal |
| eClass | V11.0 : 27400603 |
| UNSPSC | 39121410 |
| IDEA Granular Category Code (IGCC) | 4561 >> Power Blocks & Distribution Blocks |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 3 |
| Nominal current (EF000001) | 125 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | Screw |
| Number of inputs (EF000318) | 3 |
| Number of outputs (EF000319) | 3 |
| Suitable for solid conductors (EF007816) | Yes |
| Suitable for stranded conductors (EF007818) | Yes |
| Suitable for fine strand conductors (EF007804) | Yes |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | Yes |
| Suitable for extra fine-strand conductors (EF016328) | Yes |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | Yes |
| Conductor cross section, input (EF016330) | 10 mm² |
| Conductor cross section, output (EF016331) | 10 mm² |
| Conductor cross section, input AWG (EF016332) | 0 |
| Contact safe (EF004521) | Yes |
| Height (EF000040) | 65 mm |
| Width (EF000008) | 54 mm |
| Depth (EF000049) | 59.3 mm |
