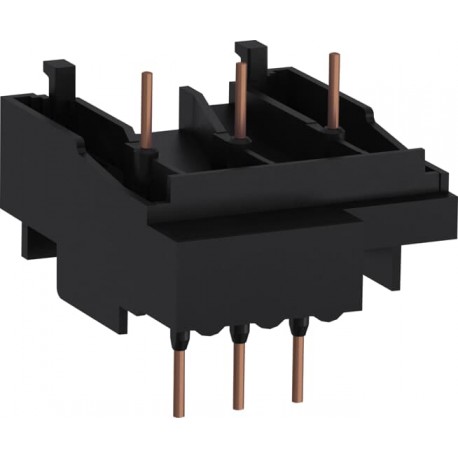

1SAM301920R1001 ABB BEMC/132 Link connection MS + MC
1SAM301920R1001
301920
ABB
1 Pcs.
BEMC/132 Link connection MS + MC
BEMC/132 Connecting Link - Screw Terminals
Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb Link connection MS + MC acts as a mechanical and electrical joining element used to couple manual motor starters and contactors together in compact motor starter assemblies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Instructions and Manuals: 1SAC200030I0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 45 mm
- Product Net Height: 23.7 mm
- Product Net Depth / Length: 58.2 mm
- Product Net Weight: 0.021 kg
- Rated Operational Voltage: 690 V AC
- Rated Insulation Voltage (U i ): 690 V
- Standards: IEC/EN 60947-1
- Product Name: Connecting Link
- Suitable For: MC1
- Suitable for Product Class: Mini Contactors
- Maximum Operating Voltage UL/CSA: 600 V AC
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Instructions and Manuals | 1SAC200030I0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Height | 23.7 mm |
| Product Net Depth / Length | 58.2 mm |
| Product Net Weight | 0.021 kg |
| Technical | |
| Rated Operational Voltage | 690 V AC |
| Rated Insulation Voltage (Ui) | 690 V |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Product Name | Connecting Link |
| Suitable For | MC1 |
| MC2 equipped with Screw terminals | |
| Suitable for Product Class | Mini Contactors |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V AC |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Information | 2CMT2021-006277 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cULus Certificate | cUL_E137861 |
| Declaration of Conformity - CE | 1SAD101100-3411 |
| Declaration of Conformity - UKCA | 1SAD201100-3411 |
| Container Information | |
| Package Level 1 Width | 67 mm |
| Package Level 1 Depth / Length | 52 mm |
| Package Level 1 Height | 49 mm |
| Package Level 1 Gross Weight | 0.03 kg |
| Package Level 1 EAN | 4013614559150 |
| Package Level 1 Units | box 1 piece |
| Package Level 2 Width | 76 mm |
| Package Level 2 Depth / Length | 125 mm |
| Package Level 2 Height | 91 mm |
| Package Level 2 Gross Weight | 0.2 kg |
| Package Level 2 EAN | 4013614559167 |
| Package Level 2 Units | box 6 piece |
| Classifications | |
| Object Classification Code | X |
| ETIM 5 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
