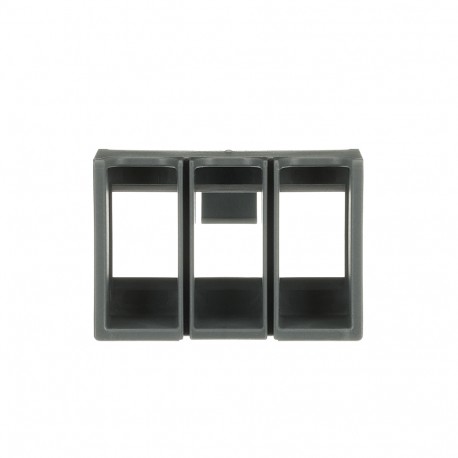

ABB 1SAM301913R1001 1SAM301913R1001 ABB TS1-M3-K terminal separator PI View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SAM301913R1001 ABB TS1-M3-K terminal separator PI

1SAM301913R1001

301913

ABB

1 Pcs.

TS1-M3-K terminal separator PI TS1-M3-K Terminal Spacer MS132-K For MS132-0.16K - MS132-32K Type E

Automation > Accessories/spare parts for low-voltage switch technology
Electronic motor protection relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB terminal separator TS1-M3-K (1SAM301913R1001) provides electrical and thermal isolation between adjacent terminal points in motor starter assemblies, preventing cross-conduction and arc flash hazards. Panel designers add these separators to maintain required clearance distances in compact control cabinets.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 2 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: 2CDC131120M6801
  • Instructions and Manuals (Part 2): 2CDC131060M0202
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 44 mm
  • Product Net Height: 46 mm
  • Product Net Depth / Length: 30 mm
  • Product Net Weight: 0.012 kg
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SAA963005-4502
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 2CMT2023-006539
  • WEEE Category: Product Not in WEEE Scope; Declaration of Conformity - CE: 1SAD101100-3411

More info

▲
Ordering
Minimum Order Quantity2 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals2CDC131120M6801
2CDC131158M6801
Instructions and Manuals (Part 2)2CDC131060M0202
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width44 mm
Product Net Height46 mm
Product Net Depth / Length30 mm
Product Net Weight0.012 kg
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SAA963005-4502
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006539
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
Declaration of Conformity - CE1SAD101100-3411
Declaration of Conformity - UKCA1SAD201100-3411
Container Information
Package Level 1 Unitsbox 2 piece
Package Level 1 Width55 mm
Package Level 1 Depth / Length70 mm
Package Level 1 Height35 mm
Package Level 1 Gross Weight0.03 kg
Package Level 1 EAN4013614556623
External Classifications and Standards
Object Classification CodeU
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC39121521
E-Number (Sweden)3110835
