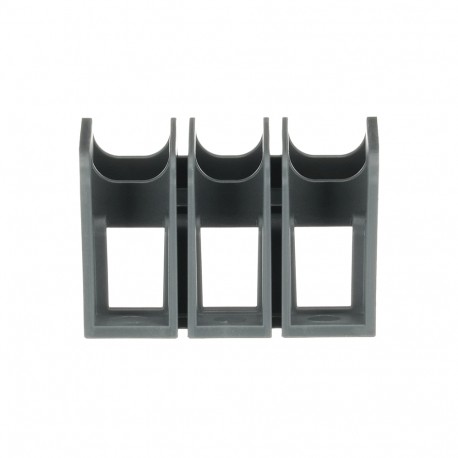

ABB 1SAM301911R1001 1SAM301911R1001 ABB TS1-M3-S1 Terminal Separator View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SAM301911R1001 ABB TS1-M3-S1 Terminal Separator

1SAM301911R1001

301911

ABB

1 Pcs.

TS1-M3-S1 Terminal Separator TS1-M3-S1 Terminal Spacer MS132 Size 1 For MS/MO132-0.16 - MS/MO132-10 Type E

Automation > Accessories/spare parts for low-voltage switch technology
Electronic motor protection relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to maintain safe insulation clearances between adjacent terminals in industrial control panels, this ABB 1SAM301911R1001 terminal separator isolates electrical connections on motor protection equipment. It prevents accidental bridging and flashovers in dense wiring configurations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 2 piece
  • Customs Tariff Number: 85389099
  • Product Net Width: 44 mm
  • Product Net Height: 37.5 mm
  • Product Net Depth / Length: 27.5 mm
  • Product Net Weight: 0.012 kg

More info

▲
Ordering
Minimum Order Quantity2 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals2CDC131022M6802
2CDC131057M6801
2CDC131159M6801
Instructions and Manuals (Part 2)2CDC131060M0202
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width44 mm
Product Net Height37.5 mm
Product Net Depth / Length27.5 mm
Product Net Weight0.012 kg
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SAA963005-4502
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006539
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
Declaration of Conformity - CE1SAD101100-3411
Declaration of Conformity - UKCA1SAD201100-3411
Container Information
Package Level 1 Unitsbox 2 piece
Package Level 1 Width55 mm
Package Level 1 Depth / Length70 mm
Package Level 1 Height35 mm
Package Level 1 Gross Weight0.03 kg
Package Level 1 EAN4013614556647
External Classifications and Standards
Object Classification CodeU
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC39121521
E-Number (Norway)4364489
