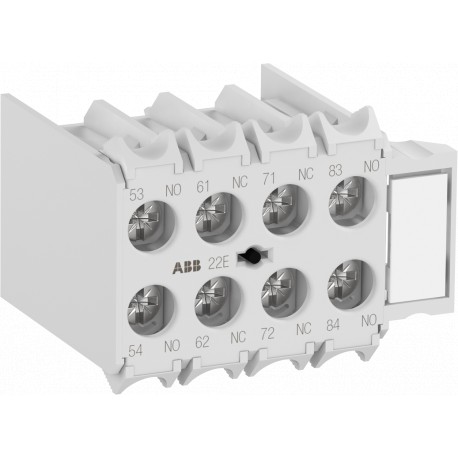

1SAL103355R9906 ABB MARN413AR Auxiliary Contact 1NO/3NC
1SAL103355R9906
103355
ABB
1 Pcs.
Automation > Auxiliary contact block
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB MARN413AR Auxiliary Contact 1NO/3NC is a multi-pole switching accessory attached to industrial control gear to deliver reliable signal feedback and interlock switching across multiple independent circuits. These auxiliary blocks expand the logic capacity of standard contactors within automation panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- EPLAN Data: 9AAC166197_EPLAN
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC102075M9901
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 45 mm
- Product Net Depth / Length: 35 mm
- Product Net Height: 27 mm
- Product Net Weight: 0.04 kg
- Number of Main Contacts NO: 0
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 3
- Number of Poles: 4P
- Standards: IEC/EN 60947-1
