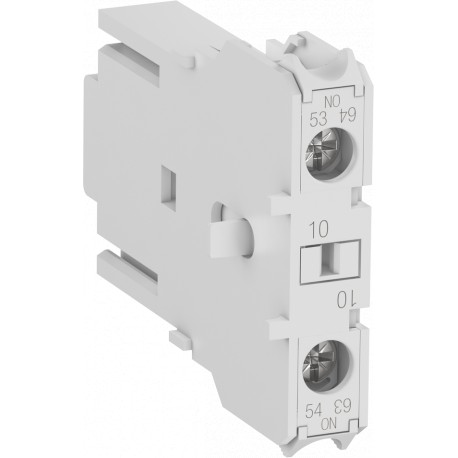

1SAL103299R9906 ABB MARL110ARS Auxiliary Contact 1NO
1SAL103299R9906
103299
ABB
1 Pcs.
Automation > Auxiliary contact block
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SAL103299R9906 MARL110ARS Auxiliary Contact 1NO is an auxiliary contact block designed to attach to primary switching devices for status monitoring and interlock signaling in control panels. These components are commonly deployed in motor control centers and automated machinery to relay switching positions to secondary control loops.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- EPLAN Data: 9AAC166197_EPLAN
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC102076M9901
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 9.8 mm
- Product Net Depth / Length: 56 mm
- Product Net Height: 42.5 mm
- Product Net Weight: 0.017 kg
- Number of Main Contacts NO: 0
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 0
- Number of Poles: 1P
- Standards: IEC/EN 60947-1
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Popular Downloads | |
| EPLAN Data | 9AAC166197_EPLAN |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC102076M9901 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 9.8 mm |
| Product Net Depth / Length | 56 mm |
| Product Net Height | 42.5 mm |
| Product Net Weight | 0.017 kg |
| Technical | |
| Number of Main Contacts NO | 0 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 1P |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-5-1 | |
| UL 60947-1 | |
| UL 60947-5-1 | |
| Rated Operational Voltage | Auxiliary Circuit 690 V AC |
| Auxiliary Circuit 440 V DC | |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Auxiliary Circuit 60 Hz | |
| Auxiliary Circuit DC | |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit 10 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 6 A |
| (400 V) 4 A | |
| (500 V) 2.5 A | |
| (690 V) 1.5 A | |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Maximum Electrical Switching Frequency | (AC-15) 360 cycles per hour |
| (DC-13) 360 cycles per hour | |
| Minimum Switching Capacity | > 17 V |
| > 5 mA | |
| Power Loss | at Rated Operating Conditions per Pole 0.4 W |
| Connecting Capacity Auxiliary Circuit | Flexible 1/2x 0.75 ... 2.5 mm² |
| Rigid 1/2x 0.75 ... 2.5 mm² | |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Degree of Protection | IP20 |
| Recommended Screw Driver | Auxiliary Circuit Pozidriv 2 |
| Tightening Torque | Auxiliary Circuit 0.8 N·m |
| Terminal Type | Ring-Tongue Terminals |
| Suitable For | MC1 |
| MC2 | |
| MCR equipped with Ring Tongue terminals | |
| Suitable for Product Class | Mini Contactors |
| Product Name | Auxiliary Contact Block |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V AC |
| General Use Rating UL/CSA | (600 V AC) 10 A |
| Connecting Capacity Auxiliary Circuit UL/CSA | Stranded 18-12 AWG |
| Contact Rating UL/CSA | A600 |
| Q600 | |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Storage -55 ... +80 °C | |
| Maximum Operating Altitude Permissible | 3000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | 1SAA971002-2001 |
| CQC Certificate | CQC2019010304193150 |
| Declaration of Conformity - CCC | 2020980304001604 |
| Declaration of Conformity - CE | 1SAD101100-3201 |
| Declaration of Conformity - UKCA | 1SAD201100-3201 |
| RINA Certificate | 1SAA971000-0801 |
| UL Certificate | E48139-19880826 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 99 mm |
| Package Level 1 Depth / Length | 20 mm |
| Package Level 1 Height | 100 mm |
| Package Level 1 Gross Weight | 0.02 kg |
| Package Level 1 EAN | 4013614550461 |
| Package Level 2 Units | box 10 piece |
| Package Level 2 Width | 100 mm |
| Package Level 2 Depth / Length | 150 mm |
| Package Level 2 Height | 105 mm |
| Package Level 2 Gross Weight | 0.22 kg |
| Package Level 2 EAN | 4013614550959 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| E-Number (Finland) | 3709623 |
