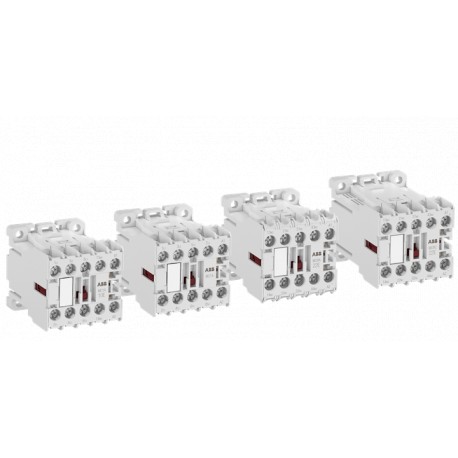

ABB 1SAL102701R9901 1SAL102701R9901 ABB MC1A310AI1 Mini Contactor View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SAL102701R9901 ABB MC1A310AI1 Mini Contactor

1SAL102701R9901

102701

ABB

1 Pcs.

MC1A310AI1 Mini Contactor MC1A310AI1 Mini Contactor 24 V AC - 3 NO - 0 NC - Soldering Pins

Automation > Power contactor, AC switching
Contactors and overload relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals2CDC103061M6801
Dimensions
Product Net Width45 mm
Product Net Depth / Length62 mm
Product Net Height48 mm
Product Net Weight0.17 kg
Technical
Number of Main Contacts NO3
Number of Main Contacts NC0
Number of Auxiliary Contacts NO1
Number of Auxiliary Contacts NC0
Number of Poles3P
StandardsIEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1
UL 60947-5-1
Rated Operational VoltageAuxiliary Circuit 690 V AC
Auxiliary Circuit 440 V DC
Main Circuit 690 V AC
Main Circuit 440 V DC
Rated Frequency (f)Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Control Circuit 50 Hz
Control Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit 60 Hz
Main Circuit DC
Conventional Free-air Thermal Current (Ith)Auxiliary Circuit 10 A
Main Circuit 20 A
Rated Operational Current AC-1 (Ie)(690 V) 55 °C 20 A
(690 V) 70 °C 16 A
(230 V) 55 °C 20 A
(230 V) 70 °C 16 A
(400 V) 55 °C 20 A
(400 V) 70 °C 16 A
(500 V) 55 °C 20 A
(500 V) 70 °C 16 A
Rated Operational Current AC-3 (Ie)(230 V) 55°C 9 A
(400 V) 55 °C 9 A
(500 V) 55 °C 8 A
(690 V) NO 55°C 5 A
Rated Operational Current AC-15 (Ie)(240 V) 6 A
(400 V) 4 A
(500 V) 2.5 A
(690 V) 1.5 A
Rated Operational Current DC-13 (Ie)(24 V) 5 A
(48 V) 2.5 A
(125 V) 0.55 A
(250 V) 0.3 A
(440 V) 0.15 A
Rated Operational Power AC-3 (Pe)(230 V) Three Phase 2.2 kW
(400 V) Three Phase 4 kW
(500 V) Three Phase 4 kW
(690 V) Three Phase, NO 4 kW
Rated Breaking Capacity AC-38 x Ie / AC-3
Rated Making Capacity AC-310 x Ie / AC-3
Rated Short-time Withstand Current Low Voltage (Icw)at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A
Rated Insulation Voltage (Ui)750 V
Rated Impulse Withstand Voltage (Uimp)Auxiliary Circuit 6 kV
Main Circuit 6 kV
Maximum Electrical Switching Frequency(AC-1) 300 cycles per hour
(AC-15) 360 cycles per hour
(AC-3) 1200 cycles per hour
(DC-1) 600 cycles per hour
(DC-13) 360 cycles per hour
(DC-3) 600 cycles per hour
Mechanical DurabilityNr. Operations 10000000 cycle
Minimum Switching CapacityAuxiliary Circuit 17 V
Auxiliary Circuit 5 mA
Coil Operating Limits(acc. to IEC 60947-4-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
Rated Control Circuit Voltage (Uc)24 V AC
Coil ConsumptionAverage Holding Value 50 Hz 5.3 V·A
Average Pull-in Value 50 Hz 5.3 V·A
Power Lossat Rated Operating Conditions AC-1 per Pole 0.7 W
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Degree of ProtectionAuxiliary Circuit Terminals IP00
Control Circuit Terminals IP00
Main Circuit Terminals IP00
Terminal TypeSoldering Pins
Mini Contactor TypeMini Contactor
Product NameMini Contactor
Technical UL/CSA
Maximum Operating Voltage UL/CSAMain Circuit 600 V AC
General Use Rating UL/CSA(600 V AC) 20 A
Horsepower Rating UL/CSA(115 V AC) Single Phase 0.5 Hp
(200 V AC) Three Phase 3 Hp
(220 ... 240 V AC) Three Phase 3 Hp
(230 V AC) Single Phase 1.5 Hp
(440 ... 480 V AC) Three Phase 5 Hp
(550 ... 600 V AC) Three Phase 5 Hp
Contact Rating UL/CSAA600
Q600
Full Load Amps Motor Use(115 V AC) Single Phase 9.8 A
(200 V AC) Three Phase 11 A
(220 ... 240 V AC) Three Phase 9.6 A
(230 V AC) Single Phase 10 A
(440 ... 480 V AC) Three Phase 7.6 A
(550 ... 600 V AC) Three Phase 6.1 A
Environmental
Ambient Air TemperatureOperation -40 ... +70 °C
Storage -55 ... +80 °C
Maximum Operating Altitude Permissible3000 m
Resistance to Shock acc. to IEC 60068-2-2711 ms Pulse 25g
Resistance to Vibrations5g 3 ... 150 Hz
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
A2L Certificate – IEC1SAA971000-4601
BV Certificate1SAA971000-0201
CB Certificate1SAA971000-2001
cURus CertificatecUL_E191658
Declaration of Conformity - CE1SAD101100-3201
Declaration of Conformity - UKCA1SAD201100-3201
RINA Certificate1SAA971000-0801
UL CertificateE191658-19880826
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width46 mm
Package Level 1 Depth / Length49 mm
Package Level 1 Height63 mm
Package Level 1 Gross Weight0.175 kg
Package Level 1 EAN4013614549823
Package Level 2 Unitsbox 20 piece
Package Level 2 Width106 mm
Package Level 2 Depth / Length238 mm
Package Level 2 Height133 mm
Package Level 2 Gross Weight3.55 kg
Package Level 2 EAN4013614549878
External Classifications and Standards
Object Classification CodeQ
ETIM 7EC000066 - Power contactor, AC switching
ETIM 8EC000066 - Power contactor, AC switching
ETIM 9EC000066 - Power contactor, AC switching
eClassV11.0 : 27371003
UNSPSC39121529
E-Number (Finland)3709592
