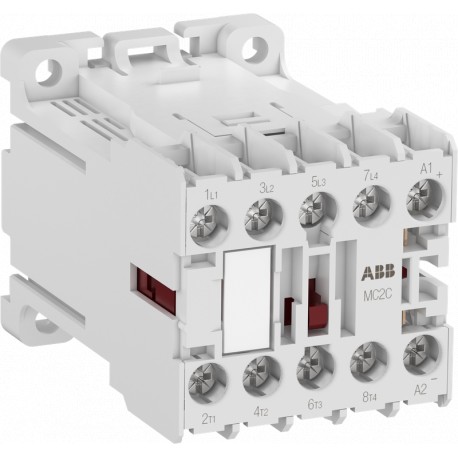

1SAL101963R9902 ABB MC2C400ATWJ Mini Contactor
1SAL101963R9902
101963
ABB
1 Pcs.
Automation > Power contactor, AC switching
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB MC2C400ATWJ Mini Contactor delivers compact switching performance for smaller industrial automation setups, control desks, and auxiliary power circuits where space is strictly limited. It provides reliable electrical isolation and multi-pole actuation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- EPLAN Data: 9AAC426185_EPLAN
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC103061M6801
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 45 mm
- Product Net Depth / Length: 68 mm
- Product Net Height: 48 mm
- Product Net Weight: 0.25 kg
- Number of Main Contacts NO: 4
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 0
- Number of Auxiliary Contacts NC: 0
- Number of Poles: 4P
- Standards: IEC/EN 60947-1
More info
