View larger
Images are for illustrative purposes only. Please refer to data sheet for details

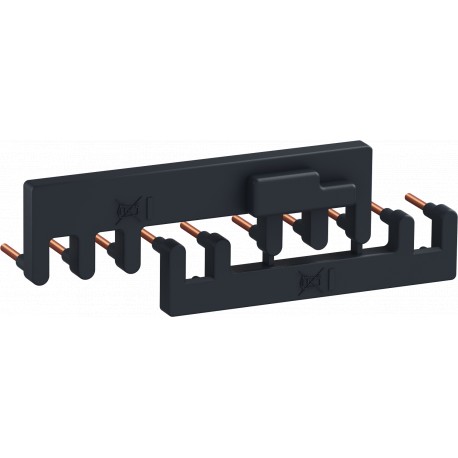

1SAL101421R9906 ABB WKMIU Reversing Connecting Link
1SAL101421R9906
101421
ABB
1 Pcs.
WKMIU Reversing Connecting Link
Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC102081M9901 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 83 mm |
| Product Net Depth / Length | 28 mm |
| Product Net Height | 20 mm |
| Product Net Weight | 0.03 kg |
| Technical | |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Terminal Type | No Terminals |
| Suitable For | MC1 |
| MC2 | |
| Suitable for Product Class | Mini Contactors |
| Product Name | Connecting Link |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cULus Certificate | cUL_E191658 |
| Declaration of Conformity - CE | 1SAD101100-3201 |
| Declaration of Conformity - UKCA | 1SAD201100-3201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 98 mm |
| Package Level 1 Depth / Length | 40 mm |
| Package Level 1 Height | 28 mm |
| Package Level 1 Gross Weight | 0.05 kg |
| Package Level 1 EAN | 4013614550591 |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| E-Number (Finland) | 3709492 |
