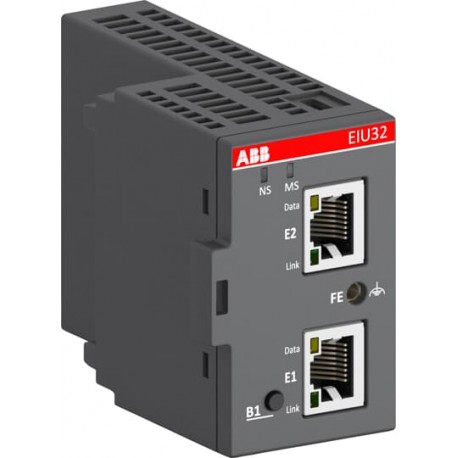

1SAJ262000R0100 ABB EIU32.0
1SAJ262000R0100
262000
ABB
1 Pcs.
Automation > Fieldbus, decentr. periphery - communication module
Electronic relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB 1SAJ262000R0100 EIU32.0 functions as an electronic interface unit designed to integrate motor controllers into larger industrial automation communication structures. Components like this help operators monitor motor performance, relay diagnostic data, and manage complex system parameters from a centralized control station. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85176200
- Product Main Type: EIU32.0
- Data Sheet, Technical Information: 2CDC135055D0201
- Instructions and Manuals: 1SAC200302M0001
- CAD Dimensional Drawing: 2CDC001079B0201
- EPLAN Data: 9AAC181493_EPLAN
- Product Net Width: 42.5 mm
- Product Net Depth / Length: 93.3 mm
- Product Net Height: 64 mm
- Product Net Weight: 0.109 kg
- Mounting Type: UMC100.3/Single Mounting
- Mounting on DIN Rail: With Single Mounting KIt
- Power Loss: Approximately 2.2 W
- Rated Control Supply Voltage (U s ): 24 V DC
- Recommended Screw Driver: Pozidriv 1
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85176200 |
| Product Main Type | EIU32.0 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC135055D0201 |
| Instructions and Manuals | 1SAC200302M0001 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC181493_EPLAN |
| Dimensions | |
| Product Net Width | 42.5 mm |
| Product Net Depth / Length | 93.3 mm |
| Product Net Height | 64 mm |
| Product Net Weight | 0.109 kg |
| Technical | |
| Mounting Type | UMC100.3/Single Mounting |
| Mounting on DIN Rail | With Single Mounting KIt |
| Power Loss | Approximately 2.2 W |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Recommended Screw Driver | Pozidriv 1 |
| Standards | CAN/CSA C22.2 No.142 |
| IEC/EN 63000 | |
| IEC 61131-2 | |
| IEC/EN 61000-6-2 | |
| IEC/EN 61000-6-4 | |
| UL 508 | |
| Suitable For | UMC100.3 |
| Environmental | |
| Degree of Protection | IP20 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA983001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006538 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ATEX Certificate | Not available |
| cULus Certificate | cULus61010_20210816-E179811 |
| Declaration of Conformity - CE | 1SVD981065-00 |
| Declaration of Conformity - UKCA | 1SVD981065-10 |
| DNV Certificate | TAA000015X-revision4 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 68 mm |
| Package Level 1 Depth / Length | 49 mm |
| Package Level 1 Height | 100 mm |
| Package Level 1 Gross Weight | 0.129 kg |
| Package Level 1 EAN | 4013614515811 |
| External Classifications and Standards | |
| eClass | V11.0 : 27242608 |
| E-Number (Norway) | 4552642 |
| ETIM 6 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 7 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 8 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 9 | EC001604 - Fieldbus, decentr. periphery - communication module |
| IDEA Granular Category Code (IGCC) | 3587 >> Fieldbus, decentr. periphery - communication module |
| Object Classification Code | K |
| UNSPSC | 32151802 |
