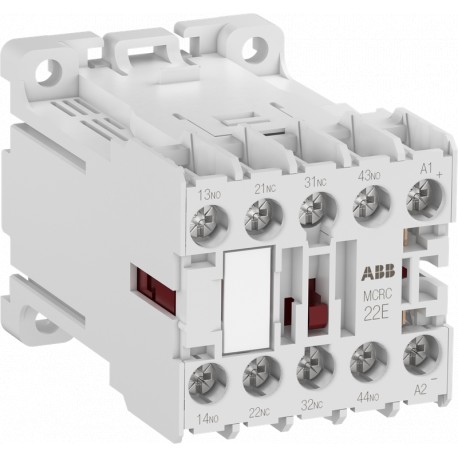

1SAH220410R9900 ABB MCRC040ATWD Mini Contactor Relay
1SAH220410R9900
220410
ABB
1 Pcs.
MCRC040ATWD Mini Contactor Relay
MCRC040ATWDMini Contactor Relay24 V DC4NO0NCScrew Terminals
Automation > Contactor relay
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SAH220410R9900 mini contactor relay provides efficient signal switching and control logic execution in compact automation architectures. It offers robust performance for auxiliary circuit applications within industrial machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- EPLAN Data: 9AAC426189_EPLAN
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC103061M6801
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 45 mm
- Product Net Depth / Length: 68 mm
- Product Net Height: 48 mm
- Product Net Weight: 0.235 kg
- Number of Main Contacts NO: 0
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 4
- Number of Auxiliary Contacts NC: 0
- Number of Poles: 4P
- Standards: IEC/EN 60947-1
