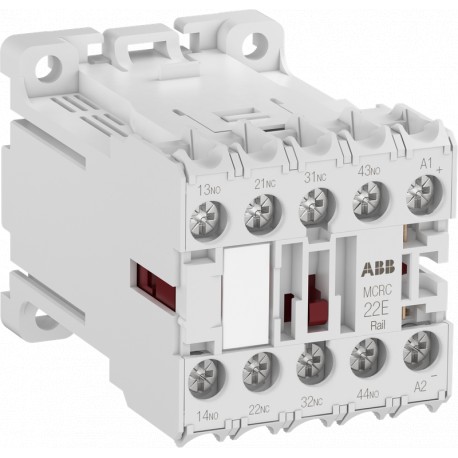

1SAH102141R9910 ABB MCRC031ARWID-RAIL Mini Contactor Relay
1SAH102141R9910
102141
ABB
1 Pcs.
Automation > Contactor relay
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB MCRC031ARWID-RAIL mini contactor relay is a compact switching device built for space-constrained industrial control panels requiring efficient auxiliary signal management. Mini contactor relays provide reliable logic routing and interlocking capabilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- EPLAN Data: 9AAC426189_EPLAN
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC103061M6801
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 45 mm
- Product Net Depth / Length: 68 mm
- Product Net Height: 48 mm
- Product Net Weight: 0.245 kg
- Number of Main Contacts NO: 0
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 3
- Number of Auxiliary Contacts NC: 1
- Number of Poles: 4P
- Standards: IEC/EN 60947-1
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Popular Downloads | |
| EPLAN Data | 9AAC426189_EPLAN |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC103061M6801 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Height | 48 mm |
| Product Net Weight | 0.245 kg |
| Technical | |
| Number of Main Contacts NO | 0 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 3 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 4P |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-5-1 | |
| UL 60947-1 | |
| UL 60947-5-1 | |
| Rated Operational Voltage | Auxiliary Circuit 690 V AC |
| Auxiliary Circuit 440 V DC | |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Auxiliary Circuit 60 Hz | |
| Auxiliary Circuit DC | |
| Control Circuit DC | |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit 10 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 6 A |
| (400 V) 4 A | |
| (500 V) 2.5 A | |
| (690 V) 1.5 A | |
| Rated Operational Current DC-13 (Ie) | (24 V) 5 A |
| (48 V) 2.5 A | |
| (125 V) 0.55 A | |
| (250 V) 0.3 A | |
| (440 V) 0.15 A | |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Maximum Electrical Switching Frequency | (AC-15) 360 cycles per hour |
| (DC-13) 360 cycles per hour | |
| Mechanical Durability | Nr. Operations 10000000 cycle |
| Minimum Switching Capacity | Auxiliary Circuit 17 V |
| Auxiliary Circuit 5 mA | |
| Coil Operating Limits | (acc. to IEC 60947-5-1) for DC supply Uc Min. ... Uc Max. (at θ ≤ 55 °C) |
| Rated Control Circuit Voltage (Uc) | 51 ... 90 V DC |
| Coil Consumption | Average Holding Value DC 4 W |
| Average Pull-in Value DC 4 W | |
| Power Loss | at Rated Operating Conditions per Pole 0.4 W |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Connecting Capacity Auxiliary Circuit | Flexible 1/2x 0.75 ... 2.5 mm² |
| Rigid 1/2x 0.75 ... 2.5 mm² | |
| Connecting Capacity Control Circuit | Flexible 1/2x 0.75 ... 2.5 mm² |
| Rigid 1/2x 0.75 ... 2.5 mm² | |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Control Circuit 9 mm | |
| Degree of Protection | Auxiliary Circuit Terminals IP20 |
| Control Circuit Terminals IP20 | |
| Main Circuit Terminals IP20 | |
| Recommended Screw Driver | Pozidriv 2 |
| Tightening Torque | Auxiliary Circuit 0.8 ... 1.0 N·m |
| Control Circuit 0.8 N·m | |
| Terminal Type | Ring-Tongue Terminals |
| Mini Contactor Type | Mini Contactor Relay |
| Product Name | Mini Contactor Relay |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V AC |
| General Use Rating UL/CSA | (600 V AC) 10 A |
| Connecting Capacity Auxiliary Circuit UL/CSA | Stranded 1/2x 18-12 AWG |
| Contact Rating UL/CSA | A600 |
| Q600 | |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Control Circuit 7 in·lb | |
| Main Circuit 7 in·lb | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Storage -55 ... +80 °C | |
| Maximum Operating Altitude Permissible | 3000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SAA971000-4601 |
| BV Certificate | 1SAA971000-0201 |
| CB Certificate | 1SAA971001-2001 |
| CQC Certificate | CQC2019010303193580 |
| Declaration of Conformity - CCC | 2020980303000255 |
| Declaration of Conformity - CE | 1SAD101100-3201 |
| Declaration of Conformity - UKCA | 1SAD201100-3201 |
| UL Certificate | E48139-19880829 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 46 mm |
| Package Level 1 Depth / Length | 49 mm |
| Package Level 1 Height | 70 mm |
| Package Level 1 Gross Weight | 0.25 kg |
| Package Level 1 EAN | 4013614549472 |
| Package Level 2 Units | box 10 piece |
| Package Level 2 Width | 243 mm |
| Package Level 2 Depth / Length | 106 mm |
| Package Level 2 Height | 80 mm |
| Package Level 2 Gross Weight | 2.56 kg |
| Package Level 2 EAN | 4013614549595 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC000196 - Contactor relay |
| ETIM 8 | EC000196 - Contactor relay |
| ETIM 9 | EC000196 - Contactor relay |
| eClass | V11.0 : 27371001 |
| UNSPSC | 39121500 |
