ABB 1SAH100015R9900 1SAH100015R9900 ABB MCRA031ATU Mini Contactor Relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

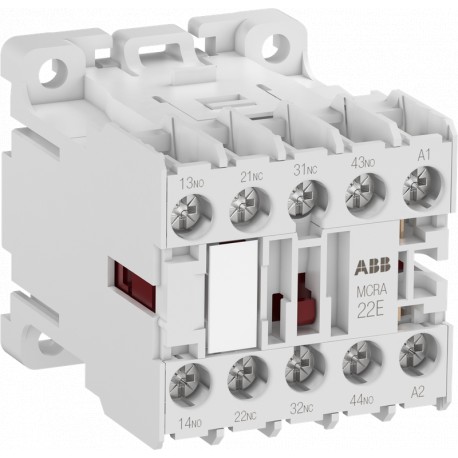

1SAH100015R9900 ABB MCRA031ATU Mini Contactor Relay

1SAH100015R9900

100015

ABB

1 Pcs.

MCRA031ATU Mini Contactor Relay The MCRA031ATU mini contactor relay is a dimension optimized 4 pole contactor relay with screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 6 A / 240 V (AC-15). The product is suitable for wall or rail mounting.

Automation > Contactor relay
Contactors and overload relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
MCRA031ATU
Product ID:
1SAH100015R9900
EAN:
4013614545986
Catalog Description:
MCRA031ATU Mini Contactor Relay 3NO+1NC 380-400V 50Hz/440V60Hz
Long Description:
The MCRA031ATU mini contactor relay is a dimension optimized 4 pole contactor relay with screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 6 A / 240 V (AC-15). The product is suitable for wall or rail mounting.
\n

Ordering

EAN:
4013614545986
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080

Dimensions

Product Net Width:
45 mm
Product Net Height:
48 mm
Product Net Depth / Length:
56 mm
Product Net Weight:
0.17 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
46 mm
Package Level 1 Height:
58 mm
Package Level 1 Depth / Length:
49 mm
Package Level 1 Gross Weight:
0.175 kg
Package Level 1 EAN:
4013614545986
Package Level 2 Units:
box 20 piece
Package Level 2 Width:
237 mm
Package Level 2 Height:
120 mm
Package Level 2 Depth / Length:
102 mm
Package Level 2 Gross Weight:
3.55 kg
Package Level 2 EAN:
4013614546532

Environmental

Ambient Air Temperature:
Operation -40 ... +55 °C

Storage -55 ... +80 °C
Maximum Operating Altitude Permissible:
3000 m
Resistance to Vibrations acc. to IEC 60068-2-6:
5g / 3 ... 150 Hz
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
RoHS Status:
Following EU Directive 2011/65/EU

Technical UL/CSA

Contact Rating UL/CSA:
A600

Q600
General Use Rating UL/CSA:
(600 V AC) 10 A
Connecting Capacity Auxiliary Circuit UL/CSA:
Stranded 1/2x 18-12 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 7 in·lb

Control Circuit 7 in·lb

Main Circuit 7 in·lb
Pilot Duty of Contact Elements acc. UL508:
A600

Q600

Additional Information

Coil Consumption:
Average Holding Value 50 Hz 5.3 V·A

Average Pull-in Value 50 Hz 5.3 V·A
Coil Operating Limits:
(acc. to IEC 60947-5-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Flexible 1/2x 0.75 ... 2.5 mm²

Rigid 1x 0.75 ... 4 mm²

Rigid 2x 0.75 ... 2.5 mm²
Connecting Capacity Control Circuit:
Flexible with Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Ferrule 2x 0.75 ... 1.5 mm²

Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²

Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²

Flexible 1/2x 0.75 ... 2.5 mm²

Rigid 1/2x 0.75 ... 2.5 mm²
Conventional Free-air Thermal Current (Ith):
Auxiliary Circuit 16 A
Degree of Protection:
Auxiliary Circuit Terminals IP20

Control Circuit Terminals IP20

Main Circuit Terminals IP20
Maximum Electrical Switching Frequency:
(AC-15) 360 cycles per hour

(DC-13) 360 cycles per hour
Mechanical Durability:
10000000 cycle
Mini Contactor Type:
Mini Contactor Relay
Minimum Switching Capacity:
Auxiliary Circuit 17 V

Auxiliary Circuit 5 mA
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
Any, Position 1-6
Mounting Type:
DIN-rail

Screw
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
3
Number of Poles:
0
Number of Main Contacts NC:
0
Number of Main Contacts NO:
0
Power Loss:
at Rated Operating Conditions per Pole 0.4 W
Product Main Type:
MCR
Product Name:
Mini Contactor
Rated Control Circuit Voltage (Uc):
50 Hz 380 ... 400 V AC

60 Hz 440 V AC
Rated Frequency (f):
Auxiliary Circuit 50 Hz

Auxiliary Circuit 60 Hz

Auxiliary Circuit DC

Control Circuit 50 Hz

Control Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV

Main Circuit 6 kV
Rated Insulation Voltage (Ui):
750 V
Rated Operational Current AC-15 (Ie):
(240 V) 6 A

(400 V) 4 A

(500 V) 2.5 A

(690 V) 1.5 A
Rated Operational Current DC-13 (Ie):
(24 V) 5 A

(48 V) 2.5 A

(125 V) 0.7 A

(250 V) 0.3 A

(440 V) 0.15 A
Rated Operational Voltage:
Auxiliary Circuit 690 V AC

Auxiliary Circuit 440 V DC
Standards:
IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 60947-5-1

UL 60947-4-1

UL 60947-5-1
Terminal Type:
Screw Terminals
Tightening Torque:
Auxiliary Circuit 0.8 ... 1.0 N·m

Control Circuit 0.8 N·m
Wire Stripping Length:
Auxiliary Circuit 9 mm

Control Circuit 9 mm

Certificates and Declarations (Document Number)

BV Certificate:\n1SAA971000-0201
CB Certificate:\n1SAA971001-2001
CCC Certificate:\n1SAA971000-3802
cULus Certificate:\ncUL_E48139
Declaration of Conformity - CE:\n1SAD938502-0305
EAC Certificate:\n1SAA971001-2701
Instructions and Manuals:\n2CDC103061M6801
RoHS Information:\n1SAD038501-0305

Classifications

ETIM 5:
EC000196 - Contactor relay
ETIM 6:
EC000196 - Contactor relay
ETIM 7:
EC000196 - Contactor relay
Object Classification Code:
K
UNSPSC:
39121500
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
7.0 27371001
\n
'

ETIM for 1SAH100015R9900 Low-voltage industrial controls and switchgear (EC000196)
Feature Name Feature Value
Rated control supply voltage AC 50 Hz (EF003978) 380 V
Rated control supply voltage AC 60 Hz (EF003979) 380 V
Voltage type for actuating (EF008242) AC
Rated operation current Ie, 400 V (EF001378) 4 A
Connection type auxiliary circuit (EF006820) Screw connection
Mounting method (EF000003) DIN rail
Interface (EF000594) No
Number of auxiliary contacts as normally closed contact (EF001377) 1
Number of auxiliary contacts as normally open contact (EF001376) 3
Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) 0
Number of auxiliary contacts as normally open contact, leading (EF007282) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With LED indication (EF005950) No
Suitable for manual operation (EF002978) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
