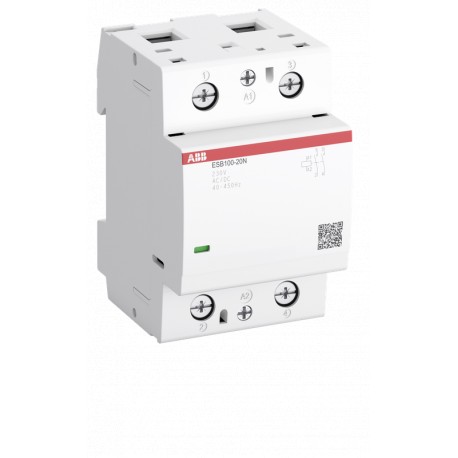

1SAE361111R0620 ABB Contact. ESB100-20N-06 2NA 230AC/DC
1SAE361111R0620
361111
ABB
1 Pcs.
Automation > Installation contactor for distribution board
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB contactor (part 1SAE361111R0620) functions as a robust switching element for managing high-current distribution tasks within commercial and industrial electrical panels. Contactors allow remote control of heavy electrical loads with minimal control power.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- EPLAN Data: 9AAC404721_EPLAN
- Data Sheet, Technical Information: 2CDC103051C0201
- Instructions and Manuals: 2CDC103043M6801
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 54 mm
- Product Net Depth / Length: 65 mm
- Product Net Height: 85 mm
- Product Net Weight: 0.405 kg
- Number of Main Contacts NO: 2
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 0
- Number of Auxiliary Contacts NC: 0
- Number of Poles: 2P
- Standards: IEC/EN 60947-1
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Popular Downloads | |
| EPLAN Data | 9AAC404721_EPLAN |
| Data Sheet, Technical Information | 2CDC103051C0201 |
| Instructions and Manuals | 2CDC103043M6801 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 54 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Height | 85 mm |
| Product Net Weight | 0.405 kg |
| Technical | |
| Number of Main Contacts NO | 2 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| IEC/EN 61095 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Rated Operational Voltage | Main Circuit 220 V DC |
| Main Circuit 400 V AC | |
| Rated Frequency (f) | Control Circuit 400 Hz |
| Control Circuit 50 Hz | |
| Control Circuit 60 Hz | |
| Control Circuit DC | |
| Main Circuit 50 Hz | |
| Main Circuit 60 Hz | |
| Main Circuit DC | |
| Rated Operational Current AC-1 (Ie) | (NO) 100 A |
| Rated Operational Current AC-7a (Ie) | (NO) 100 A |
| Rated Operational Power AC-1 (Pe) | (230 V) Single Phase, NO 23 kW |
| Rated Operational Power AC-7a (Pe) | (230 V) Single Phase, NO 23 kW |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Electrical Durability | AC-1 (NO) 50000 cycle |
| AC-7a (NO) 50000 cycle | |
| Maximum Electrical Switching Frequency | (AC-1) 150 cycles per hour |
| (AC-7a) 150 cycles per hour | |
| Mechanical Durability | Nr. Operations 1000000 cycle |
| Coil Operating Limits | (acc. to IEC 60947-4-1) 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) |
| Rated Control Circuit Voltage (Uc) | 230 V |
| Coil Consumption | Average Holding Value 50 / 60 Hz 7.5 V·A |
| Average Holding Value DC 8.5 W | |
| Average Pull-in Value 50 Hz 90 V·A | |
| Average Pull-in Value 60 Hz 90 V·A | |
| Average Pull-in Value DC 100 W | |
| Power Loss | at Rated Operating Conditions per Pole 4.2 W |
| at Rated Operating Conditions AC-1 per Pole 6 W | |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 10 ... 35 mm² |
| Flexible with Insulated Ferrule 1x 10 ... 35 mm² | |
| Flexible 1x 10 ... 35 mm² | |
| Rigid 1x 10 ... 50 mm² | |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1x 1 ... 2.5 mm² |
| Flexible with Ferrule 2x 0.75 ... 1.5 mm² | |
| Flexible with Insulated Ferrule 1x 1 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.75 ... 1 mm² | |
| Flexible 1x 1 ... 2.5 mm² | |
| Flexible 2x 1 ... 1.5 mm² | |
| Rigid 1x 1 ... 4 mm² | |
| Rigid 2x 1 ... 2.5 mm² | |
| Wire Stripping Length | Control Circuit 7 mm |
| Main Circuit 15 mm | |
| Degree of Protection | IP20 |
| Recommended Screw Driver | Control Circuit Pozidriv 1 |
| Main Circuit Pozidriv 2 | |
| Tightening Torque | Control Circuit 0.9 N·m |
| Main Circuit 3 N·m | |
| Terminal Type | Screw Terminals |
| Width in Number of Modular Spacings | 3.0 |
| Product Name | Installation Contactors |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 480 V AC |
| General Use Rating UL/CSA | (acc. to UL 480 V) 100 A |
| Connecting Capacity Main Circuit UL/CSA | Solid 8-0 AWG |
| Stranded 8-0 AWG | |
| Connecting Capacity Control Circuit UL/CSA | Solid 16-10 AWG |
| Stranded 16-10 AWG | |
| Tightening Torque UL/CSA | Control Circuit 8 in·lb |
| Main Circuit 27 in·lb | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Storage -40 ... +80 °C | |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 15g |
| Pollution Degree | 3 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Consumer |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| End Of Life Disassembling Instructions | 1SBC100156C0264 |
| Environmental Product Declaration - EPD | 1SAC200434H0001 |
| Certificates and Declarations | |
| ABS Certificate | 1SAA920000-0101 |
| CB Certificate | 1SAA920008-2001 |
| CQC Certificate | CQC2018010304057354 |
| CQC2018010304057345 | |
| Declaration of Conformity - CCC | 2020980304001315 |
| 2020980304001316 | |
| Declaration of Conformity - CE | 1SAD101100-3301 |
| Declaration of Conformity - UKCA | 1SAD201100-3301 |
| DNV Certificate | 1SAA920000-0306 |
| EAC Certificate | 1SAA920001-2702 |
| RINA Certificate | 1SAA920000-0801 |
| RMRS Certificate | 1SAA920000-0705 |
| UL Certificate | E191658-19960301 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 92 mm |
| Package Level 1 Depth / Length | 57 mm |
| Package Level 1 Height | 69.5 mm |
| Package Level 1 Gross Weight | 0.405 kg |
| Package Level 1 EAN | 4013614533037 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC001653 - Installation contactor for distribution board |
| ETIM 8 | EC001653 - Installation contactor for distribution board |
| ETIM 9 | EC001653 - Installation contactor for distribution board |
| eClass | V11.0 : 27142308 |
| UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4759 >> Installation contactor for distribution board |
| E-Number (Finland) | 3707802 |
| E-Number (Sweden) | 3210575 |
