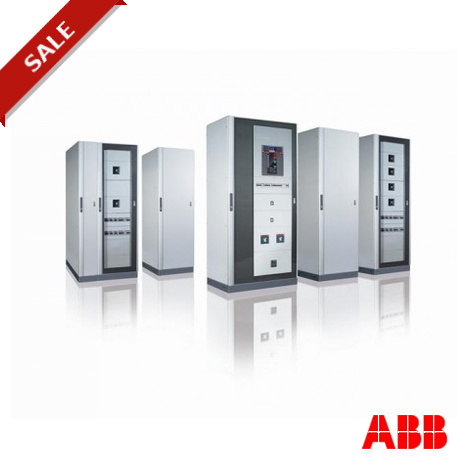

ABB ED3009 ED3009 ABB 100A 2P 18MODULES BUSBARS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ED3009 ABB 100A 2P 18MODULES BUSBARS

ED3009

ED3009

ABB

1 unit


Automation > e-mobility
System Pro E Power Distribution Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A modular busbar assembly, the ABB ED3009 component facilitates secure power distribution within electrical cabinets and switchgear setups. It organizes internal connections efficiently to maintain system integrity.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-07-01
  • Product Main Type: ArTu K Modular Structures
  • Product Name: Main Distribution Board
  • Suitable for Product Class: Main Distribution Board, Cabinet
  • Data Sheet, Technical Information: 1STC008001D0203
  • RoHS Information: 1STC860027
  • Product Net Weight: 2.280 kg
  • EAN: 8015646610225
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85381000
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 0.070 m
  • Package Level 1 Height: 0.030 m
  • Package Level 1 Length: 0.325 m
  • Package Level 1 Gross Weight: 0.390 kg
  • Package Level 1 EAN: 8015646610225

More info

▲

100A 2P 18modules busbars

Ordering

  • EAN:
    8015646610225
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85381000

Dimensions

  • Product Net Weight:
    2.280kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.070 m
  • Package Level 1 Height:
    0.030 m
  • Package Level 1 Length:
    0.325 m
  • Package Level 1 Gross Weight:
    0.390 kg
  • Package Level 1 EAN:
    8015646610225

Environmental

  • RoHS Status:
    Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-07-01

Additional Information

  • Product Main Type:
    ArTu K Modular Structures
  • Product Name:
    Main Distribution Board
  • Suitable For:
    ArTu L Modular Structures, ArTu M Monobloc Structures, ArTu K Modular Structures, Modular Boards - System pro E power
  • Suitable for Product Class:
    Main Distribution Board, Cabinet

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC000261 - Switchgear cabinet (empty)
  • ETIM 5:
    EC000261 - Switchgear cabinet (empty)
  • Object Classification Code:
    U
